Walterscheid - 205132 - Hydraulic Top Link (Cat-4)
Walterscheid - 205132 - Hydraulic Top Link (Cat-4)
Walterscheid - 205132 - Hydraulic Top Link (Cat-4)
Walterscheid - 205132 - Hydraulic Top Link (Cat-4)

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

Walterscheid - 205132 - Hydraulic Top Link (Cat-4)

Walterscheid - 205132 - Hydraulic Top Link (Cat-4)

€1,746.04

(Excl. VAT)

Price

(Excl. VAT)

€1,746.04

Product Description

The Walterscheid 205132 is a high-quality, genuine hydraulic top link designed for heavy-duty agricultural applications, specifically for Category 4 linkages. This robust top link features a 100mm bore diameter, a 50mm rod diameter, and a 300mm stroke, providing reliable and precise adjustment for various implements. It has a closed length of 710mm and an open length of 1010mm, ensuring versatility for different machinery setups. Manufactured by Walterscheid, a leading OEM supplier, this part guarantees durability and performance.
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

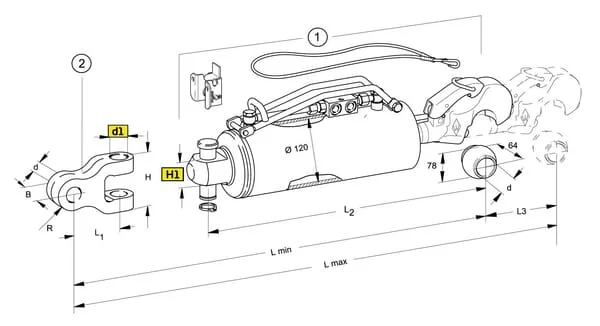

Product Details

Brand
Walterscheid
Unit
Each
Details
The stated length refers to the length without fork head, measured from the centre distance
Benefits
Maximum tensile and compressive force for optimum performance Versatile in use by mounting various fork heads Valve block protected by special reinforced bars
L3Stroke
248 mm
Consists of
Supplied with handle and tractor-side holder Note: fork head must be ordered separately.
L maxMax. length
907 mm
L minMin. length
659 mm
Outside diameter
135 mm
Application range
For tractors over 294 kW
Max.tractor power
294 kW
Cylinder bore diameter
120 mm
Mounting type - rod connection
Hook
Top link category - rod connection
4
Mounting type - cylinder connection
No mounting
Mounting hole diameter - rod connection
45,2 mm
Top link category - cylinder connection
4
Manufacturer
Walterscheid
