Walterscheid - 562201675 - Friction Clutch K92
Walterscheid - 562201675 - Friction Clutch K92
Walterscheid - 562201675 - Friction Clutch K92
Walterscheid - 562201675 - Friction Clutch K92
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walterscheid - 562201675 - Friction Clutch K92

Walterscheid - 562201675 - Friction Clutch K92

€523.15

(Excl. VAT)

Price

(Excl. VAT)

€523.15

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Benefits
Small installation space Torque retention Smooth transition
Properties
Independent of direction of rotation Power transmission via friction discs Not adjustable Suitable as a starting clutch
Cross length
86 mm
Technical info
Observe maintenance instructions
Shaft size code
W2400 P400
Clutch type code
K92
Outside diameter
170 mm
Application range
Mowers Rotary harrows Pick-up
Max static torque
750 N·m
Cross cap diameter
32 mm
LClutch part length
44 mm
Max. rotation speed
1000 r/min
Connection locking type
Collar lock
Outside connection diameter
1-3/8 Inch1.375 Inch
Connection number of splines/grooves
6
Manufacturer
Walterscheid

Similar items you might like

  • Walterscheid

    Walterscheid - 5622216135 - Friction Clutch W2500 K92/4 135danm

    Walterscheid

    €702.33

  • Walterscheid

    Walterscheid - 5623940 - Freewheeling Clutch W2500 1 3/4 Z6

    Walterscheid

    €469.37

  • Walterscheid

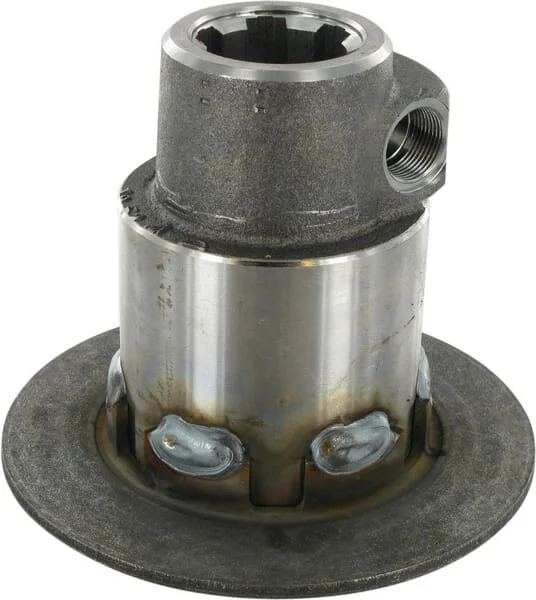

    Walterscheid - 563118 - K96/4 Clamp Bolt Hub 1.3/4-6 Spline
