Walterscheid - 5714918 - Break Bolt Coupling W2300 M8-R56

OEM Supplier

SKU: walterscheid-5714918

Walterscheid - 5714918 - Break Bolt Coupling W2300 M8-R56

€328.62

(excl. VAT)

In stock - ready to ship

Ships within 48 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€328.62

Protects against blockages and overload Power transmission via shear bolt Drive fully disconnected Repairable by replacing a shear bolt Independent rotation direction
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Brand
Walterscheid
Part Numbers
5714918
Pros
Prevents against subsequent damage Easy to repair
Unit
Each
Details
Complete interruption of the drive Can be restored by replacing a shear bolt
Benefits
Prevents consequent damage Easily restorable
Properties
Independent of the direction of rotation Power transmission via shear bolt
Technical info
Protects against blockages and overload
Product details
Protects against blockages and overload Power transmission via shear bolt Drive fully disconnected Repairable by replacing a shear bolt Independent rotation direction
Shaft size code
W2300 P300
Clutch type code
KB61/20
Long description
Shear bolt clutches complete for manure pumps, shredders and light balers, among others.
Application range
Fertiliser pump Shredders Light balers

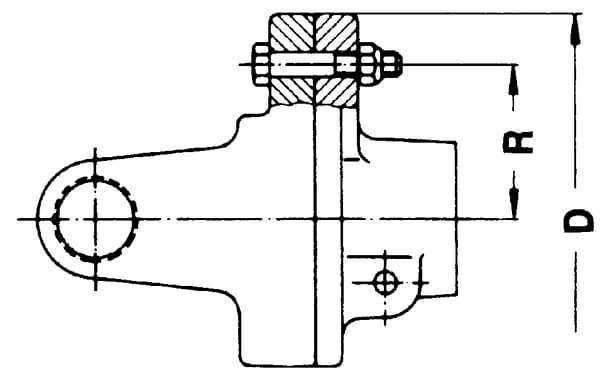

DOutside diameter
140 mm
Max dynamic torque
1860 N·m
Max. rotation speed
1000 r/min
Shear bolts quality
8.8
Share bolts thread length
50
RShare bolts circle radius
56
Share bolts thread diameter
M8
Locking type by machine side
Push pin
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
EAN
8435194025614
Manufacturer
Walterscheid
