Walterscheid - 5715018 - 57.150.18 Break Bolt Head 2500 KB61/20 M10-R64

OEM Supplier

SKU: walterscheid-5715018

Walterscheid - 5715018 - 57.150.18 Break Bolt Head 2500 KB61/20 M10-R64

€493.77

(excl. VAT)

In stock - ready to ship

Ships within 82 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€493.77

Protects against blockages and overload Power transmission via shear bolt Drive fully disconnected Repairable by replacing a shear bolt Independent rotation direction
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Brand
Walterscheid
Part Numbers
5715018
Pros
Prevents against subsequent damage Easy to repair
Unit
Each
Details
Complete interruption of the drive Can be restored by replacing a shear bolt
Benefits
Prevents consequent damage Easily restorable
Properties
Independent of the direction of rotation Power transmission via shear bolt
Technical info
Protects against blockages and overload
Product details
Protects against blockages and overload Power transmission via shear bolt Drive fully disconnected Repairable by replacing a shear bolt Independent rotation direction
Shaft size code
W2500 P500
Clutch type code
KB61/20
Long description
Shear bolt clutches complete for manure pumps, shredders and light balers, among others.
Application range
Fertiliser pump Shredders Light balers

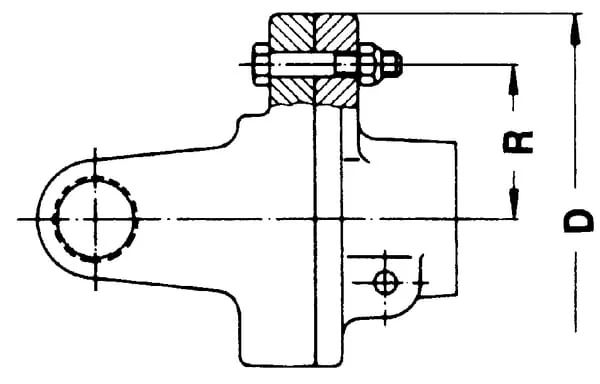

DOutside diameter
156 mm
Max dynamic torque
3330 N·m
Max. rotation speed
1000 r/min
Shear bolts quality
8.8
Share bolts thread length
60
RShare bolts circle radius
64
Share bolts thread diameter
M10
Locking type by machine side
Clamp bolt (non interfering)
Connection outside diameter by tractor side
1-3/4 Inch
Connection number of splines/grooves by tractor side
6
EAN
8435194191791
Manufacturer
Walterscheid
