Home
Attachments & Lift
PTO & Driveline
PTO Clutches
Walterscheid - 5721518 - Shearbolt Clutch Kb61/20
Walterscheid - 5721518 - Shearbolt Clutch Kb61/20
Walterscheid - 5721518 - Shearbolt Clutch Kb61/20
Walterscheid - 5721518 - Shearbolt Clutch Kb61/20

In stock - ready to ship

Order now for delivery between 7 May and 11 May
Free shipping

Pay Securely with

Walterscheid - 5721518 - Shearbolt Clutch Kb61/20

Walterscheid - 5721518 - Shearbolt Clutch Kb61/20

€510.41

(Excl. VAT)

Price

(Excl. VAT)

€510.41

Product Description

Protects against blockages and overload Power transmission via shear bolt Drive fully disconnected Repairable by replacing a shear bolt Independent rotation direction
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,301 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Pros
Prevents against subsequent damage Easy to repair
Unit
Each
Benefits
Prevents consequent damage Easily restorable
Properties
Independent of the direction of rotation Power transmission via shear bolt
Technical info
Protects against blockages and overload
Shaft size code
W2400 P400
Clutch type code
KB61/20
Application range
Fertiliser pump Shredders Light balers

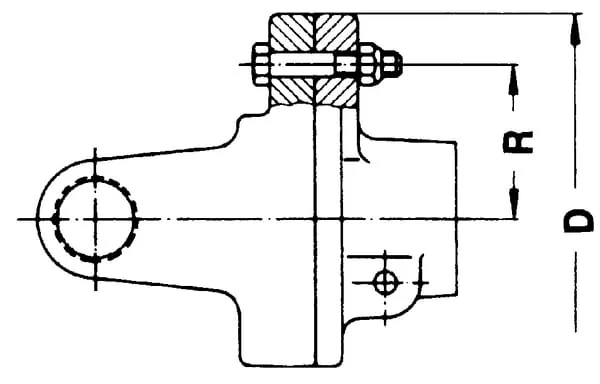

DOutside diameter
156 mm
Max dynamic torque
2920 N·m
Max. rotation speed
1000 r/min
Shear bolts quality
8.8
Share bolts thread length
60
RShare bolts circle radius
56
Share bolts thread diameter
M10
Locking type by machine side
Push pin
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
21
Manufacturer
Walterscheid

Similar items you might like

  • Walterscheid

    Walterscheid - 572652 - Hub Kb61/20 1.3/4 M10 Rad.48

    Walterscheid

    €241.48

  • Walterscheid

    Walterscheid - 572654 - Extension Kb61/20 1.3/4-20 M10

    Walterscheid

    €279.92

  • Walterscheid

    Walterscheid - 572674 - Kb61/20 Hub 1.3/4-20 M10 Rad.64

    Walterscheid

    €312.98

  • Walterscheid

    Walterscheid - 5810951165 - Friction Clutch W2400 FK96/4R

    Walterscheid

    €1,057.19

  • Walterscheid

    Walterscheid - 5810951180 - Friction Clutch FK96/4R 180danm W2400

    Walterscheid

    €1,106.38

  • Walterscheid

    Walterscheid - 5910041120 - Cam Clutch K64/12R 120danm

    Walterscheid

    €1,135.47

  • Walterscheid

    Walterscheid - 5910143250 - Cam Clutch EK64/22R

    Walterscheid

    €1,403.27

  • Walterscheid

    Walterscheid - 5910144250 - Clutch EK64/24R 1 3/4-20 TK138

    Walterscheid

    €1,520.79

  • Walterscheid

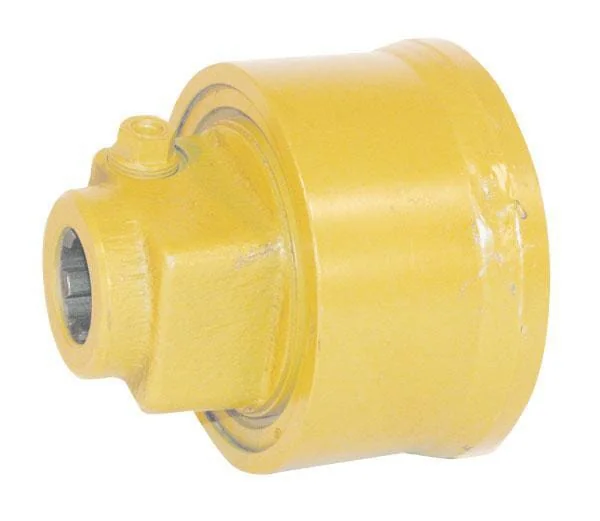

    Walterscheid - 5910342165 - Cam Clutch EK64/14R
