Walterscheid - W100E710 - Adapter Eco W100E/710 SD05
Walterscheid - W100E710 - Adapter Eco W100E/710 SD05
Walterscheid - W100E710 - Adapter Eco W100E/710 SD05
Walterscheid - W100E710 - Adapter Eco W100E/710 SD05
Walterscheid - W100E710 - Adapter Eco W100E/710 SD05

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping

Pay Securely with

Walterscheid - W100E710 - Adapter Eco W100E/710 SD05

Walterscheid - W100E710 - Adapter Eco W100E/710 SD05

€224.79

(Excl. VAT)

Price

(Excl. VAT)

€224.79

Product Description

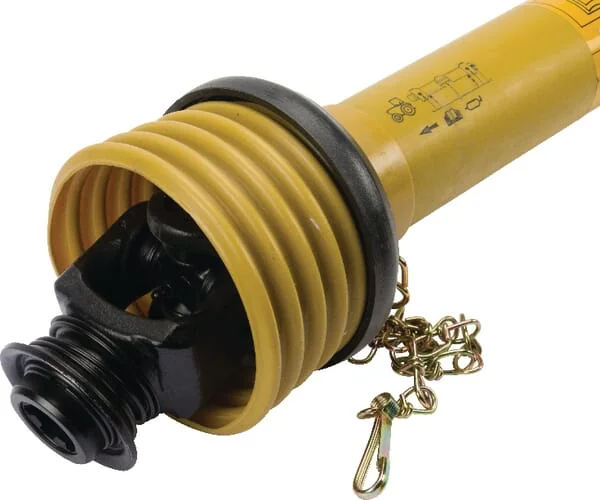

The Walterscheid W100E710 Adapter Eco is a high-quality, genuine component designed for use with Walterscheid PTO shafts. This adapter facilitates reliable and secure power transmission in agricultural and industrial machinery. Engineered for durability and precise fit, the W100E710 ensures optimal performance and longevity for your power take-off systems.
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Length
710 mm
Size code
W100E
Properties
Tractor side 1-3/8" (6) shaft collar kit Machinery side 1-3/8" (6) slide pin Lubrication interval: 8 hours CE marking awarded
Consists of
Pto shaft with guard tube Declaration of conformity Instruction manual
Power 540 rpm
12 kW
Power 1000 rpm
18 kW
Technical info
Follow the Walterscheid instruction manual Max. dynamic capacity 540 rpm: 12 kW, 210 Nm Max. dynamic capacity 1000 rpm: 18 kW, 175 Nm Values at a working angle of 5° and service life 700 hours
Protection type
SD05
Application range
Small crop sprayers Artificial fertiliser spreaders Tedders Windrowers
Max static torque
1000 N·m
Inner tube profile
OOc
Outer tube profile
Oa
Profile tube shape
Lemon
Attachment machine side
Quick disconnect yoke
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
3,4 mm
Outer tube wall thickness
2,8 mm
Locking type by machine side
Collar lock
Locking type by tractor side
Collar lock
Inner tube large outside diameter
31 mm
Outer tube large outside diameter
39 mm
Cross joint length by machine side
55 mm
Cross joint length by tractor side
55 mm
Cross joint bush diameter by machine side
22 mm
Cross joint bush diameter by tractor side
22 mm
Connection outside diameter by machine side
1-3/8 Inch
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Connection number of splines/grooves by tractor side
6
Manufacturer
Walterscheid
