Home
Attachments & Lift
PTO & Driveline
PTO Shafts

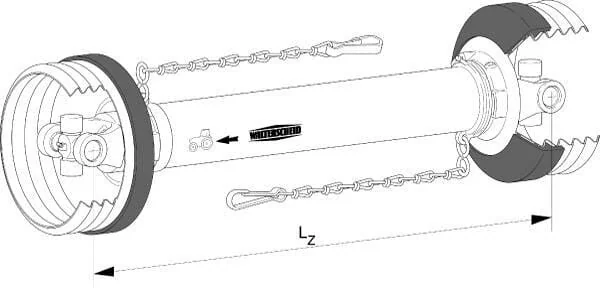

Walterscheid - W2500860OG - Walterscheid PTO SD25 without Yoke
Walterscheid - W2500860OG - Walterscheid PTO SD25 without Yoke
Walterscheid - W2500860OG - Walterscheid PTO SD25 without Yoke
Walterscheid - W2500860OG - Walterscheid PTO SD25 without Yoke

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

Walterscheid - W2500860OG - Walterscheid PTO SD25 without Yoke

Walterscheid - W2500860OG - Walterscheid PTO SD25 without Yoke

€526.58

(Excl. VAT)

Price

(Excl. VAT)

€526.58

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Length
860 mm
Size code
W2500
Properties
Lubrication frequency from 50 to 100 hours Fulfils the requirements of EC 89/392 EEC Complies with safety standard EN12965 CE marking available
Consists of
Pto shaft with guard tube Declaration of conformity Instruction manual Without connection forks
Technical info
Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm Values at working angle 5° and service life 1000 hours LZ = slid-in length in mm, from intersection to intersection
Protection type
SD25
Long description
Series W2500 without yokes
Application range
Harvesters Soil cultivating machinery Wood shredders
Max static torque
6000 N·m
Inner tube profile
S4
Outer tube profile
S5
Cross joint length by machine side
89 mm
Cross joint length by tractor side
89 mm
Cross joint bush diameter by machine side
36 mm
Cross joint bush diameter by tractor side
36 mm
Manufacturer
Walterscheid
