Home
Attachments & Lift
PTO & Driveline
PTO Shafts
Walterscheid - W2600860OG - PTO Shaft without Yokes W2600 L: 860mm, Walterscheid
Walterscheid - W2600860OG - PTO Shaft without Yokes W2600 L: 860mm, Walterscheid
Walterscheid - W2600860OG - PTO Shaft without Yokes W2600 L: 860mm, Walterscheid
Walterscheid - W2600860OG - PTO Shaft without Yokes W2600 L: 860mm, Walterscheid
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walterscheid - W2600860OG - PTO Shaft without Yokes W2600 L: 860mm, Walterscheid

Walterscheid - W2600860OG - PTO Shaft without Yokes W2600 L: 860mm, Walterscheid

€1,067.88

(Excl. VAT)

Price

(Excl. VAT)

€1,067.88

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Length
860 mm
Size code
W2600
Properties
Lubrication frequency from 50 to 100 hours Fulfilling the requirements laid out in EC 89/392 EEC Fulfilling the safety standard EN12965 CE marking available
Consists of
PTO shaft with shielding Declaration of conformity Instruction manual
Technical info

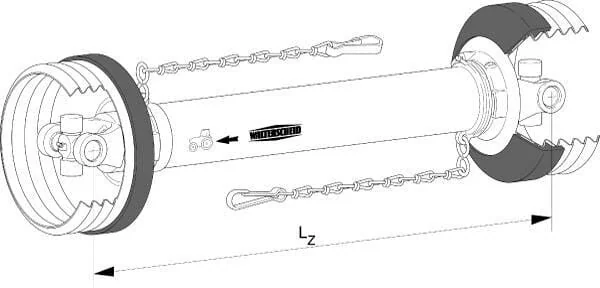

See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 79 kW, 1400 Nm Max. dynamic capacity 1000 rpm: 122 kW, 1165 Nm Values at working angle 5° and service life 1000 hours LZ = slid in length in mm, from intersection to intersection
Protection type
SD35
Application range
Heavy-duty soil cultivating machinery Wood shredders Stump grinders
Max static torque
7800 N·m
Inner tube profile
S5H
Outer tube profile
S6
Cross joint length by machine side
104 mm
Cross joint length by tractor side
104 mm
Cross joint bush diameter by machine side
42 mm
Cross joint bush diameter by tractor side
42 mm
Manufacturer
Walterscheid
