Name: Walterscheid - WWE23801210 - Wide-Angle PTO Shaft WWE 2380 L: 1,210mm
Brand: Walterscheid
SKU: walterscheid-wwe23801210
Price: 891.23 EUR
Availability: InStock

Brand

Walterscheid

Unit

Each

Length

1210 mm

Size code

WWE 2380

Properties

Tractor side 1-3/8" (6) shaft collar kit Device side 1-3/8" (6) slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available

Consists of

Wide angle pto-shaft, 1 sided, with guard tube Declaration of conformity Instruction manual

Power 540 rpm

28 kW

Power 1000 rpm

44 kW

Technical info

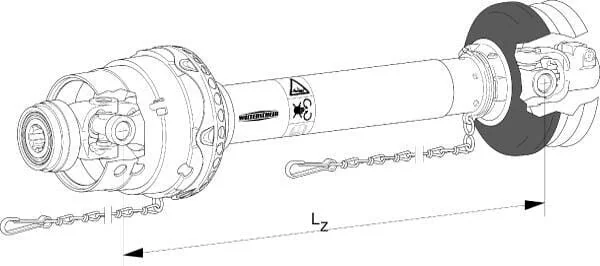

Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 28 kW, 500 Nm Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm Values at working angle 10° and service life 1000 hours LZ = slid in length centre distance of outer intersection

Product details

PTO shaft 1-sided wide-angle with safety guard Declaration of conformity User instructions Tractor side 1-3/8" (6) collar fastening Machine side 1-3/8" (6) spring pin Lubricating interval of 8 hours Meets the requirements according to EC 89/392 EEC Meets safety standard EN12965 Provided with "CE" marking Angle in continuous use maximum 25° Angle may be 80° only briefly Max. dyn. power 540 rpm: 28kW - 500Nm Max. dyn. power 1000 rpm: 44kW - 415Nm Values at bending angle 10° and service life 1000 hours LZ= Retracted length c.t.c. outer cross

Protection type

ST15

Long description

Wide-angle PTO shafts 80° series WWE 2380

Application range

Slurry tank Crop sprayers Fertiliser spreader Hay press

Max static torque

2500 N·m

Inner tube profile

OvGA

Outer tube profile

1G

Profile tube shape

Lemon

Attachment machine side

Quick disconnect yoke

Attachment tractor side

Quick disconnect yoke

Inner tube wall thickness

4 mm

Outer tube wall thickness

2,7 mm

Locking type by machine side

Collar lock

Locking type by tractor side

Collar lock

Inner tube large outside diameter

40 mm

Outer tube large outside diameter

48 mm

Cross joint length by machine side

75 mm

Cross joint length by tractor side

75 mm

Cross joint bush diameter by machine side

27 mm

Cross joint bush diameter by tractor side

27 mm

Connection outside diameter by machine side

1-3/8 Inch

Connection outside diameter by tractor side

1-3/8 Inch

Cross joint length by tractor side - longer part

91 mm

Connection number of splines/grooves by machine side

6

Connection number of splines/grooves by tractor side

6

Cross joint bush diameter by tractor side - longer part

24 mm

Manufacturer

Walterscheid
