Name: Walterscheid - WWE24801010S4LGAS5 - Wide-angle PTO Shaft WWE 2480
Brand: Walterscheid
SKU: walterscheid-wwe24801010s4lgas5
Price: 1127.97 EUR
Availability: InStock

Brand

Walterscheid

Unit

Each

Length

1010 mm

Size code

WWE 2480

Properties

Tractor side 1-3/8" (6) shaft collar kit Device side 1-3/8" (6) slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available

Consists of

Wide angle pto-shaft, 1 sided, with guard tube Declaration of conformity Instruction manual

Power 540 rpm

39 kW

Power 1000 rpm

61 kW

Technical info

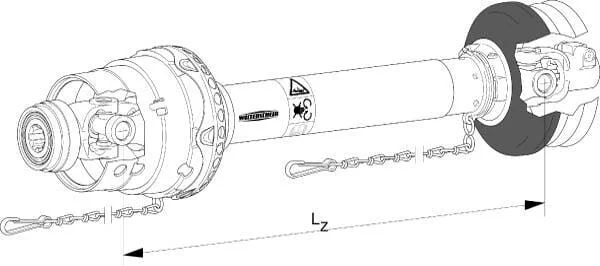

Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 39 kW, 695 Nm Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm Values at working angle 10° and service life 1000 hours LZ = slid in length centre distance of outer intersection

Product details

PTO shaft 1-sided wide-angle with safety guard Declaration of conformity User instructions- Tractor side 1-3/8" (6) puller fastening Machine side 1-3/8" (6) spring pin Lubricating interval of 8 hours Meets the requirements according to EC 89/392 EEC Meets safety standard EN12965 Provided with "CE" marking-Angle in continuous use maximum 25º Angle may be 80° only briefly Max. dyn. power 540 rpm: 39kW - 695Nm Max. dyn. power 1000 rpm: 61kW - 580Nm Values at bending angle 10° and service life 1000 hours LZ= Retracted length c.t.c. outer cross

Protection type

ST25

Long description

Wide-angle PTO shafts 80° series WWE 2480 / 80°

Application range

Mixing wagon Slurry wagon Harvesters Silage wagon

Max static torque

4000 N·m

Inner tube profile

S4GA

Outer tube profile

S5

Profile tube shape

Star

Attachment machine side

Quick disconnect yoke

Attachment tractor side

Quick disconnect yoke

Outer tube wall thickness

4,5 mm

Locking type by machine side

Collar lock

Locking type by tractor side

Collar lock

Inner tube large outside diameter

51 mm

Outer tube large outside diameter

61 mm

Cross joint length by machine side

76 mm

Cross joint length by tractor side

76 mm

Cross joint bush diameter by machine side

32 mm

Cross joint bush diameter by tractor side

32 mm

Connection outside diameter by machine side

1-3/8 Inch

Connection outside diameter by tractor side

1-3/8 Inch

Cross joint length by tractor side - longer part

94 mm

Connection number of splines/grooves by machine side

6

Connection number of splines/grooves by tractor side

6

Cross joint bush diameter by tractor side - longer part

27 mm

Manufacturer

Walterscheid
