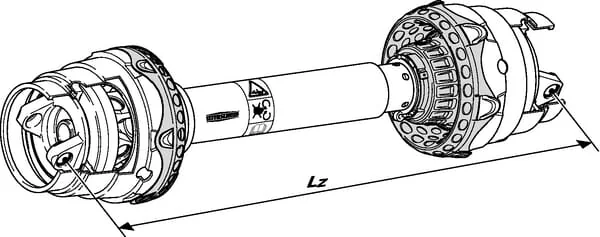

Walterscheid - WWZ22801210OG - Wide Angle PTO Shaft Without Yokes WWZ 2280 L: 1210mm
Walterscheid - WWZ22801210OG - Wide Angle PTO Shaft Without Yokes WWZ 2280 L: 1210mm
Walterscheid - WWZ22801210OG - Wide Angle PTO Shaft Without Yokes WWZ 2280 L: 1210mm
Walterscheid - WWZ22801210OG - Wide Angle PTO Shaft Without Yokes WWZ 2280 L: 1210mm
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walterscheid - WWZ22801210OG - Wide Angle PTO Shaft Without Yokes WWZ 2280 L: 1210mm

Walterscheid - WWZ22801210OG - Wide Angle PTO Shaft Without Yokes WWZ 2280 L: 1210mm

€1,262.44

(Excl. VAT)

Price

(Excl. VAT)

€1,262.44

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Length
1210 mm
Size code
WWZ 2280
Properties
Tractor side 1-3/8" Z6 shaft collar kit Device side 1-3/8" Z6 slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Consists of
Wide angle pto-shaft, 2 sided, with guard tube Declaration of conformity Instruction manual
Technical info
Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 20 kW, 335 Nm Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm Values at working angle 5° and service life 1000 hours LZ = slid in length centre distance of outer intersection
Protection type
SD15
Application range
Slurry tank Crop sprayers Drawn hay processing machine
Max static torque
1750 N·m
Inner tube profile
OvGA
Outer tube profile
1G
Cross joint length by machine side
61 mm
Cross joint length by tractor side
61 mm
Cross joint bush diameter by machine side
24 mm
Cross joint bush diameter by tractor side
24 mm
Cross joint length by tractor side - longer part
76 mm
Cross joint bush diameter by tractor side - longer part
22 mm
Manufacturer
