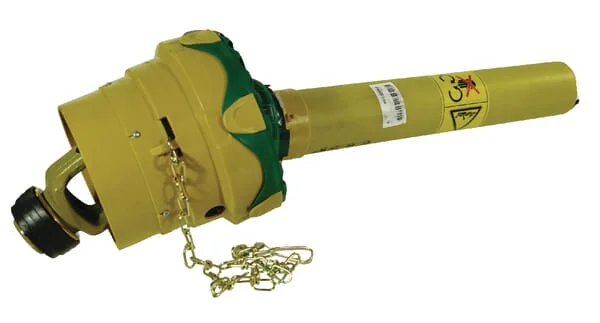

Walterscheid - WWZ23801210I - PTO Half WW Bi-Tube SD15

OEM Supplier

SKU: walterscheid-wwz23801210i

Walterscheid - WWZ23801210I - PTO Half WW Bi-Tube SD15

€691.62

(excl. VAT)
RRP:€800.25
Save €108.59

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€691.62

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Brand
Walterscheid
Part Numbers
wwz23801210i
Unit
Each
Length
1135 mm
Size code
WWH 2380
Properties
Tractor-side 1–3/8" (6) shaft collar kit Lubrication interval: 8 hours Fulfils EC 89/392 EEC requirements Complies with EN12965 safety standard CE marking available
Consists of
Pto shaft with guard tube Declaration of conformity Instruction manual
Power 540 rpm
28 kW
Power 1000 rpm
44 kW
Technical info
Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 28 kW, 500 Nm Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm Values at working angle 10° and service life 1000 hours
Protection type
SD15
Application range
Slurry tank Crop sprayers Fertiliser spreader Hay press
Max static torque
2500 N·m
Inner tube profile
OvGA
Profile tube shape
Lemon
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
4 mm
Locking type by tractor side
Automatic collar lock
Inner tube large outside diameter
40 mm
Cross joint length by machine side
75 mm
Cross joint length by tractor side
75 mm
Cross joint bush diameter by machine side
27 mm
Cross joint bush diameter by tractor side
27 mm
Connection outside diameter by tractor side
1-3/8 Inch
Cross joint length by machine side - longer part
91 mm
Cross joint length by tractor side - longer part
91 mm
Connection number of splines/grooves by tractor side
6
Cross joint bush diameter by tractor side - longer part
24 mm
Manufacturer
Walterscheid
