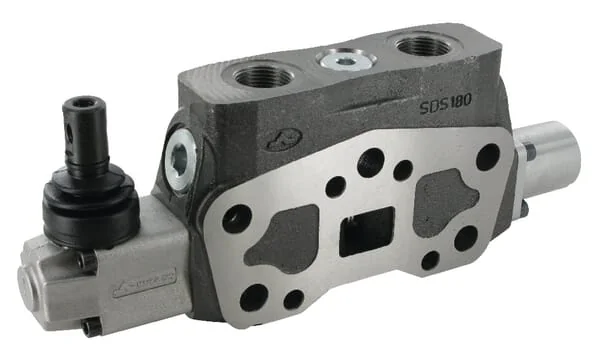

Walvoil - SDS180118 - Walvoil Section SDS180/1-18-P Parallel

OEM Quality

SKU: walvoil-sds180118

Walvoil - SDS180118 - Walvoil Section SDS180/1-18-P Parallel

€174.53

(excl. VAT)
RRP:€253.51
Save €78.97

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€174.53

Segmented valves provide a very large range of options and possible combinations
Walvoil
Walvoil, a leading Italian manufacturer of hydraulic components, was founded in 1973 in Reggio Emilia, Italy. The company has grown significantly over the decades, establishing itself as a key player in the global hydraulics market. Today, Walvoil operates as part of the Interpump Group, a world leader in high-pressure piston pumps and power take-offs, further strengthening its position in the industry. Walvoil specializes in the design and production of a comprehensive range of hydraulic valves, pumps, and complete hydraulic systems. Its product portfolio includes directional control valves, proportional valves, hydraulic remote controls, and gear pumps, which are integral to the operation of various mobile and industrial machinery. These components are engineered for precision, reliability, and efficiency, catering to demanding applications in agriculture, construction, and material handling. At Partao, you can find a wide selection of genuine Walvoil spare parts across top categories such as Hydraulic Seals, Bolts & Fasteners, Brackets & Supports, Control Consoles, and Control Modules. Over 11,006 genuine Walvoil spare parts are available at Partao. Operators across diverse sectors rely on Walvoil components for their robust performance and durability. The brand's commitment to innovation and quality ensures that its hydraulic solutions meet the rigorous demands of modern agricultural and industrial equipment, providing precise control and operational efficiency in challenging environments worldwide.

Brand
Part Numbers
SDS180118
Unit
Each
Details
Segmented valves provide a very large range of options and possible combinations
Benefits
Best options for individual, custom control block design
Properties
Every work segment with non-return valve in P-channel Cartridge bores in A and B lines Hydraulic, pneumatic or manual controls available Flow control valves for integration
Consists of
Segment Control lever not included
Max. leakage
3 cm³/min
Max. flow rate
160 l/min
Technical info
Individual components of the SD16 are compatible A standard control block consists of one input and one output segment, 1-6 work segments, set of bolts (type SD16) Our sales department will be happy to assist you in the design of a complete block Customer-specific design possible
Sealing material
Nitrile rubber [NBR]
Application range
Hydraulic applications with very large oil quantities Wheeled loaders Forklifts Loading cranes Forestry machines
Spool positioning
1-8
Max working pressure
315 BAR
Max return line pressure
25 BAR
Return port thread diameter
1 Inch
Workport A - Thread diamter
3/4 Inch
Workport B - Thread diamter
3/4 Inch
Pressure port thread diameter
3/4 Inch
Manufacturer
Walvoil
