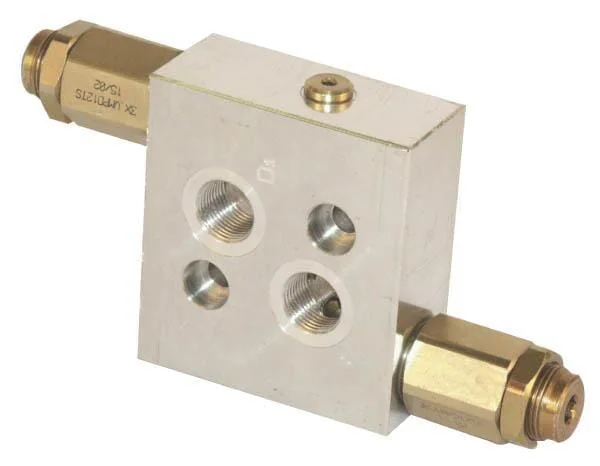

Walvoil - VADDF25001 - Relief Valve 25 A 16 OMV A 1"BSP
Walvoil - VADDF25001 - Relief Valve 25 A 16 OMV A 1"BSP
Walvoil - VADDF25001 - Relief Valve 25 A 16 OMV A 1"BSP
Walvoil - VADDF25001 - Relief Valve 25 A 16 OMV A 1"BSP
Walvoil - VADDF25001 - Relief Valve 25 A 16 OMV A 1"BSP
Walvoil - VADDF25001 - Relief Valve 25 A 16 OMV A 1"BSP
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walvoil - VADDF25001 - Relief Valve 25 A 16 OMV A 1"BSP

Walvoil - VADDF25001 - Relief Valve 25 A 16 OMV A 1"BSP

€301.01

(Excl. VAT)

Price

(Excl. VAT)

€301.01

Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Product Details

Brand
Walvoil
Type
Spring-loaded differential valve
Unit
Each
Extra info
Suitable for mounting on; OMV SMV
Designed for
OMV SMV
Housing width
60 mm
Max. flow rate
180 l/min
Technical info
Protect a hydromotor against occurring pressure peaks as a result of external forces, which can cause an abrupt stop or the direct reversal of the direction of rotation. Intermittent switching time, quick responding.
AHousing length
130 mm
Adjustment type
Socket screw
BHousing height
150 mm
Connection type
Thread
Max working pressure
210 BAR
Connection thread type
BSP
Mounting holes diameter
12,5 mm
Adjustable pressure range
5-210 BAR
Connection thread diameter
1 Inch
Manufacturer
Walvoil
