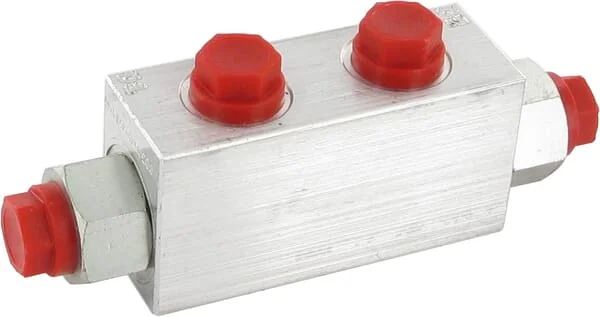

Walvoil - VBPDL03001 - Controlled Check Valve 1/4
Walvoil - VBPDL03001 - Controlled Check Valve 1/4
Walvoil - VBPDL03001 - Controlled Check Valve 1/4
Walvoil - VBPDL03001 - Controlled Check Valve 1/4
Walvoil - VBPDL03001 - Controlled Check Valve 1/4
Walvoil - VBPDL03001 - Controlled Check Valve 1/4

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Walvoil - VBPDL03001 - Controlled Check Valve 1/4

Walvoil - VBPDL03001 - Controlled Check Valve 1/4

€54.00

(Excl. VAT)

Price

(Excl. VAT)

€54.00

Product Description

The Walvoil VBPDL03001 is a genuine controlled check valve designed for hydraulic systems, featuring 1/4 BSP ports, a maximum flow rate of 30 L/min, and a maximum operating pressure of 350 bar. Constructed with a durable steel body and hardened, ground steel internal components, it ensures reliable performance. Standard BUNA N seals provide effective sealing. This valve has a cracking pressure of 0.5 bar and a release ratio of 1:4.5, making it suitable for various industrial and mobile hydraulic applications.
Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Product Details

Brand
Walvoil
Type
Double
Unit
Each
Material
Aluminium
Pilot ratio
1:4.5
ATotal width
81 mm
BTotal height
40 mm
FTotal length
110 mm
Max flow rate
30 l/min
Intended medium
Mineral oil
Long description
This double-acting controlled check valve consists of two controlled check valves. Activation takes place internally from the opposite pressure line. For example, a double-acting cylinder can be secured against unintentional lowering in both directions. The valve should be mounted as close to the user as possible. Show more
Opening pressure
0,5 BAR
Max working pressure
210 BAR
Number of connections
4
Connections thread type
BSP
Connections thread diameter
1/4 Inch
Manufacturer
Walvoil
