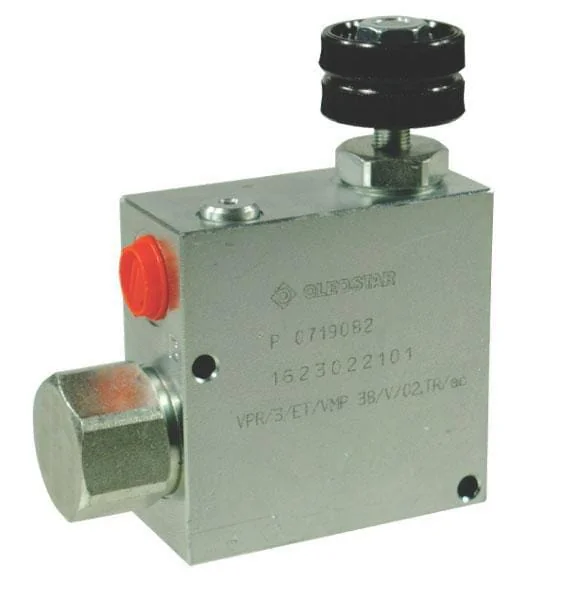

Walvoil - VPR3ET10001ST - 3-Way Flow Control Valve 90-50 Steel

OEM Quality

SKU: walvoil-vpr3et10001st

Walvoil - VPR3ET10001ST - 3-Way Flow Control Valve 90-50 Steel

€162.38€138.79 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€162.38

Brand
Walvoil
Part Numbers
vpr3et10001st
Unit
Each
ATotal length
90 mm
BTotal height
90 mm
Max. flow rate
90 l/min
Technical info
These valves are fitted with an adjusting ring with lock nut, which is standard, port T should not be loaded under pressure.
Adjustment type
Hand wheel
Housing material
Steel
Max. regulated flow
50 l/min
Max working pressure
350 BAR
Mounting possibility
Suited for in-line mounting
Connection thread type
BSP
CTotal width (diameter)
40 mm
Max working temperature
90 °C
Min working temperature
-25 °C
Connection thread diameter
3/8 Inch3/4 Inch
Connection 2, thread diameter
1/2 Inch
Manufacturer
Walvoil

Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,091 genuine Walvoil spare parts.
