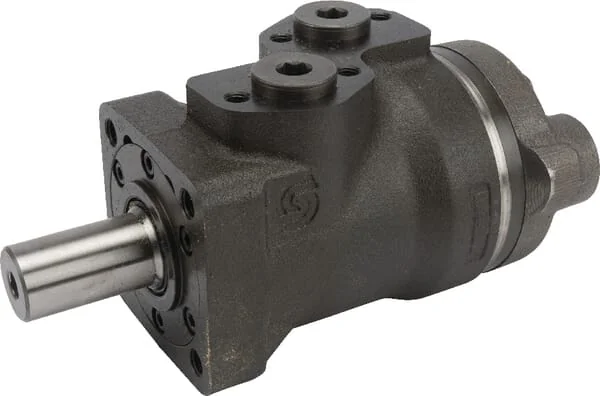

White - OMP801515212 - Orbit Motor, Shaft Diameter 25.4-L,Le
White - OMP801515212 - Orbit Motor, Shaft Diameter 25.4-L,Le
White - OMP801515212 - Orbit Motor, Shaft Diameter 25.4-L,Le
White - OMP801515212 - Orbit Motor, Shaft Diameter 25.4-L,Le
White - OMP801515212 - Orbit Motor, Shaft Diameter 25.4-L,Le
White - OMP801515212 - Orbit Motor, Shaft Diameter 25.4-L,Le

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

White - OMP801515212 - Orbit Motor, Shaft Diameter 25.4-L,Le

White - OMP801515212 - Orbit Motor, Shaft Diameter 25.4-L,Le

€390.09

(Excl. VAT)

Price

(Excl. VAT)

€390.09

Product Details

Brand
White
Unit
Each
Benefits
Flexible
Max. power
10 kW
Properties
Robust and compact construction High axial and radial load carrying capacity of the axle High starting torque Pressure drop: P1 = operating pressure continuous, P2 = operating pressure intermittent, P3 = peak pressure
Shaft type
Straight parallel
Displacement
80 cm³/rev
Flange shape
Square
Rotor length
10,4 mm
Sealing type
Standard
Housing length
156 mm
Max. flow rate
60 l/min
Shaft diameter
25 mm
Technical info
Seal can be ordered under no. OMP 9-AFD 98 (older series on request) Equipped with leakage oil connection so that the product can easily be used in series with other engines, can also be used in closed-centre hydraulic systems; P1 = operating pressure continuous, P2 = int. operating pressure max. 10%/min, P3= peak pressure
Application range
Wherever high torque and low speeds are required, e.g. for sweeping brushes, loader wagons, chain drives, spreaders, lawnmowers, winches, agricultural machinery, forestry machinery and construction machinery
Max pressure peak
225 BAR
Shaft thread type
Metric
Max rotation speed
770 r/min
Min rotation speed
10 r/min
Main port thread type
G
Max continuous torque
15 N·m
Shaft thread diameter
M8
Number of mounting holes
4
Main port thread diameter
1/2 Inch
Mounting holes thread type
Metric
Mounting holes thread diameter
M10
Max. continous working pressure
140 BAR
Max intermittend working pressure
175 BAR
Manufacturer
White
