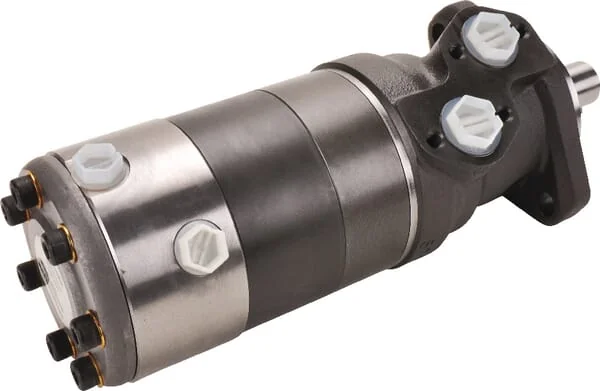

White - OMR3151516467 - Orbit Motor OMR315- Diameter 25 - Brake
White - OMR3151516467 - Orbit Motor OMR315- Diameter 25 - Brake
White - OMR3151516467 - Orbit Motor OMR315- Diameter 25 - Brake
White - OMR3151516467 - Orbit Motor OMR315- Diameter 25 - Brake
White - OMR3151516467 - Orbit Motor OMR315- Diameter 25 - Brake
White - OMR3151516467 - Orbit Motor OMR315- Diameter 25 - Brake

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

White - OMR3151516467 - Orbit Motor OMR315- Diameter 25 - Brake

White - OMR3151516467 - Orbit Motor OMR315- Diameter 25 - Brake

€793.69

(Excl. VAT)

Price

(Excl. VAT)

€793.69

Product Details

Brand
White
Unit
Each
Max. power
5 kW
Shaft type
Straight parallel
Flange code
SAE-A
Displacement
315 cm³/rev
Flange shape
Oval
Sealing type
Standard
L1Rotor length
54,8 mm
Max. flow rate
60 l/min
Shaft diameter
25 mm
L1Housing length
279,2 mm
Max pressure peak
150 BAR
Max rotation speed
190 r/min
Min rotation speed
5 r/min
Main port thread type
G
Max continuous torque
300 N·m
Drain port thread type
G
Number of mounting holes
2
Main port thread diameter
1/2 Inch
Drain port thread diameter
1/4 Inch
Brake release port thread type
G
Max. continous working pressure
70 BAR
Max intermittend working pressure
100 BAR
Brake release port thread diameter
1/4 Inch
Manufacturer
White
