AGCO - 199860030070 - Fendt Lift Shaft Sleeve
AGCO - 199860030070 - Fendt Lift Shaft Sleeve
AGCO - 199860030070 - Fendt Lift Shaft Sleeve
AGCO - 199860030070 - Fendt Lift Shaft Sleeve
AGCO - 199860030070 - Fendt Lift Shaft Sleeve
AGCO - 199860030070 - Fendt Lift Shaft Sleeve

In stock - ready to ship

Order now for delivery between 11 July and 15 July
Free shipping on orders over €60

Pay Securely with

AGCO - 199860030070 - Fendt Lift Shaft Sleeve

AGCO - 199860030070 - Fendt Lift Shaft Sleeve

€44.71

(Excl. VAT)

Price

(Excl. VAT)

€44.71

Product Description

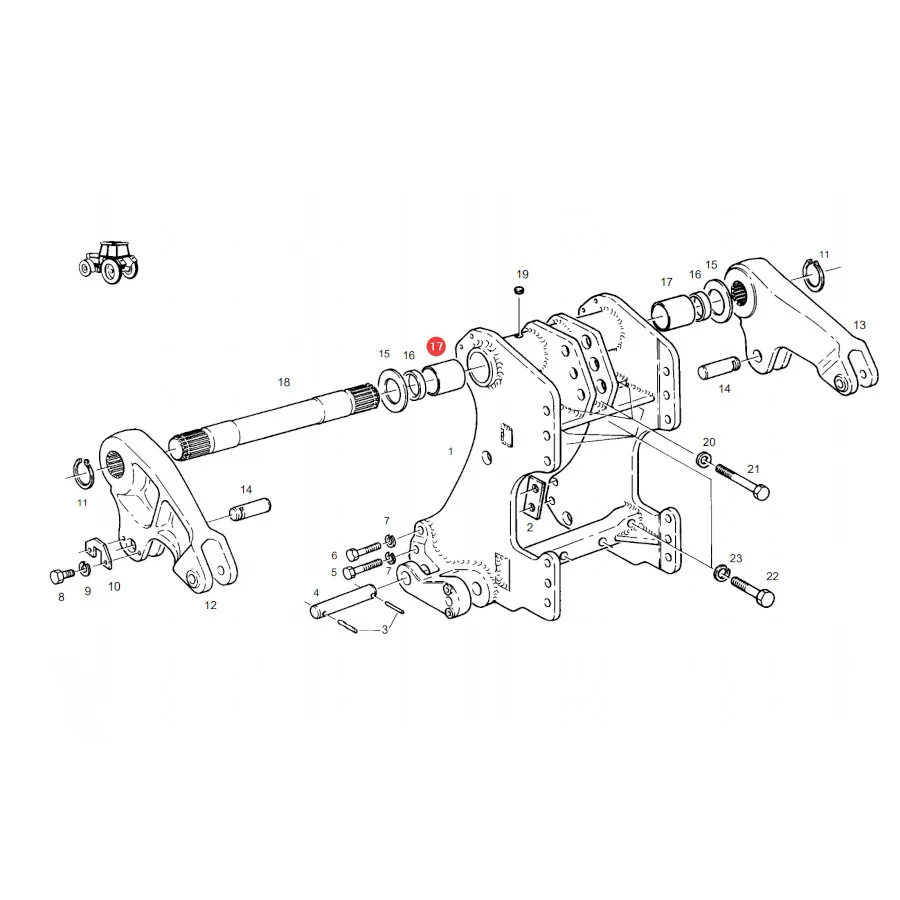

This bushing supports the lift shaft within the three-point linkage housing, maintaining correct alignment between the shaft and the linkage arms. It sits between the shaft and the housing bore, taking up radial loads as the linkage raises and lowers an implement. Wear on the bushing bore increases clearance, which causes the shaft to tilt under load and leads to uneven lift-arm movement or binding. The bushing is machined to the original shaft tolerance so that no shimming or reaming is required during installation. On reinstall, clean the housing bore and lubricate the bushing inner surface before sliding the shaft into place.
AGCO
AGCO Corporation is a global leader in the design, manufacture, and distribution of agricultural machinery and precision ag technology. Founded in 1990 and headquartered in Duluth, Georgia, USA, AGCO has grown through strategic acquisitions to become a major force in the agricultural equipment industry. The company operates a portfolio of well-known brands, serving farmers worldwide. AGCO's extensive product range includes tractors, combines, hay tools, sprayers, forage equipment, and implements. Its brands are recognized for innovation and reliability, with popular series such as the Fendt Vario tractors, Massey Ferguson Global Series, and Valtra T Series. The company is committed to developing advanced agricultural solutions that enhance productivity and sustainability for modern farming operations. Partao offers a wide selection of AGCO spare parts, including Fuel Caps, Other Harvesting Parts, O-Rings, Other Axles and Steering Parts, and Other Cab, Body & Steering Parts. These components are crucial for maintaining the performance and longevity of AGCO machinery. Over 810,239 genuine AGCO spare parts are available at Partao. Farmers and agricultural businesses globally rely on AGCO's diverse product offerings for their operations, from small-scale farms to large commercial enterprises. The company's strong dealer network ensures readily available parts and service, supporting the continuous operation of its machinery in various agricultural settings, including row-crop farming, livestock operations, and specialty crop production.

Product Details

Brand
AGCO
Fits

Fendt

411 Vario412 Vario413 Vario414 Vario415 VarioFarmer 310Farmer 310 LS/LSAFarmer 311Farmer 311 LS/LSAFarmer 312Farmer 312 LS/LSAFarmer 409 VarioFarmer 410 VarioFarmer 411 VarioFarmer 412 VarioFavorit 509Favorit 510Favorit 511Favorit 512Favorit 514Favorit 515GT 390GT 395XYLON 520XYLON 522XYLON 524
Length
80 mm
Location
Three-point linkage
Application
Tractors and vehicles
Product Type
Bushing
Inner Diameter
65 mm
Outer Diameter
80 mm
Manufacturer
AGCO
