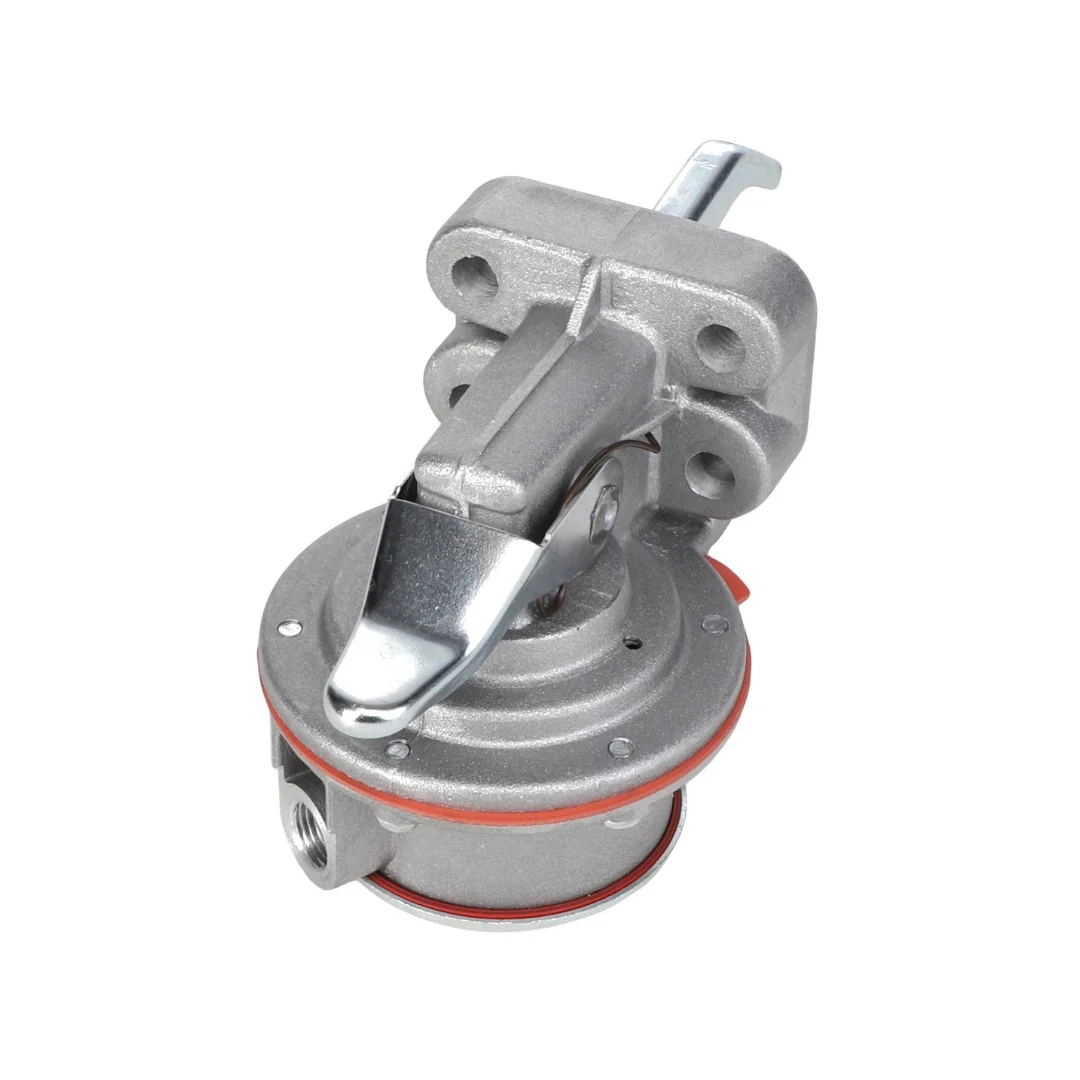

AGCO - 4222449M91 - Massey Ferguson Fuel Feed Pump

Genuine OEM Part

SKU: agco-4222449m91

AGCO - 4222449M91 - Massey Ferguson Fuel Feed Pump

€119.68

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€119.68

This fuel feed pump draws diesel from the tank and delivers it to the injection system at the required pressure. It is mounted on the engine block and is driven by the engine camshaft via a lever. The pump contains an internal diaphragm or piston that creates suction on the intake stroke and pushes fuel toward the injection pump on the delivery stroke. A worn pump will cause hard starting, loss of power, or engine stalling under load. The original manufacturer's pump matches the lever geometry and mounting flange dimensions of the engine it was designed for, ensuring correct stroke length and no binding on the cam lobe. When replacing, transfer the lever and gasket from the old unit, and torque the mounting bolts to specification.
AGCO

Brand
AGCO
Fits

Massey ferguson

Location
Fuel system
Application
Tractors and vehicles
Product Type
Feed pump
Number Of Holes
4
Flange To Lever End
58 mm
Bolt Hole Spacing Vertical
25 mm
Bolt Hole Spacing Horizontal
45 mm
Manufacturer
AGCO
