AGCO - 834216M1 -  Massey Ferguson PTO Seal Ring
AGCO - 834216M1 -  Massey Ferguson PTO Seal Ring
AGCO - 834216M1 -  Massey Ferguson PTO Seal Ring
AGCO - 834216M1 -  Massey Ferguson PTO Seal Ring
AGCO - 834216M1 -  Massey Ferguson PTO Seal Ring
AGCO - 834216M1 -  Massey Ferguson PTO Seal Ring

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping on orders over €60

Pay Securely with

AGCO - 834216M1 -  Massey Ferguson PTO Seal Ring

AGCO - 834216M1 - Massey Ferguson PTO Seal Ring

€10.70

(Excl. VAT)

Price

(Excl. VAT)

€10.70

Product Description

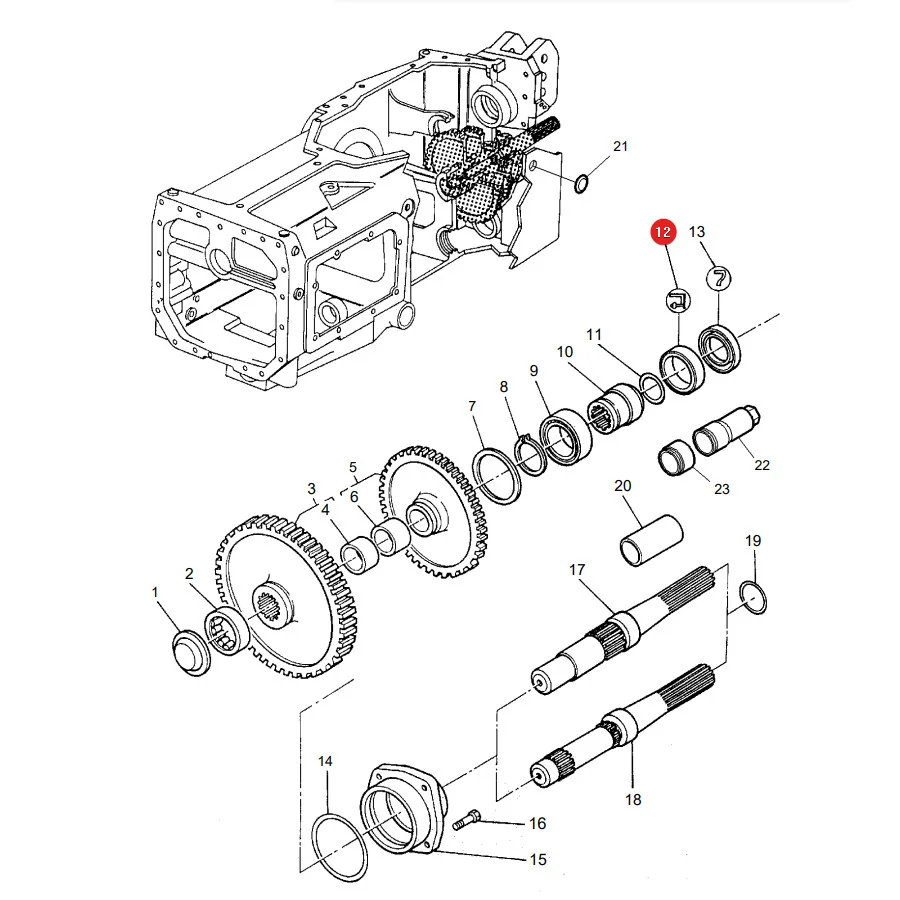

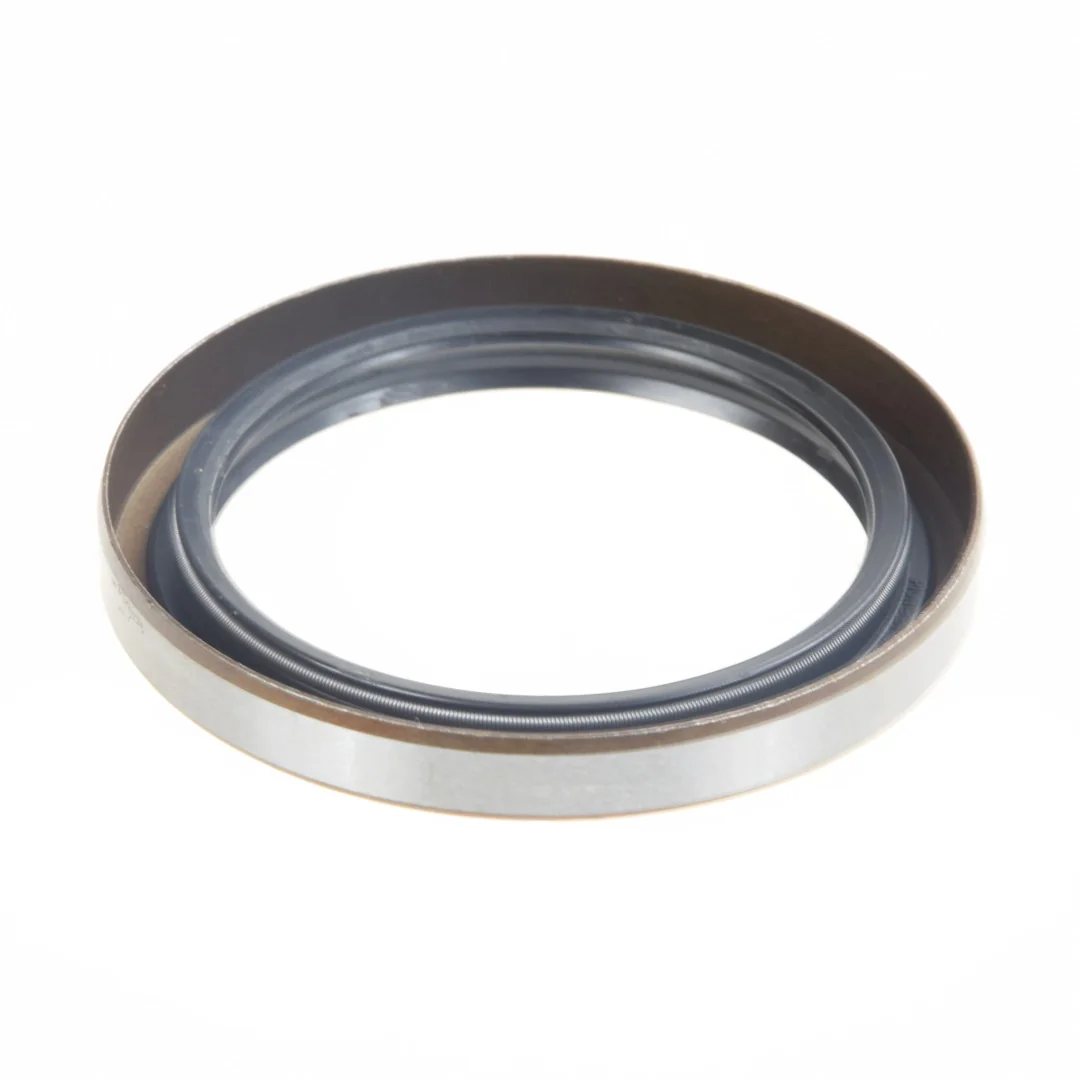

This PTO oil seal protects the drive system output shaft by retaining lubricant and excluding contaminants. It sits at the rear of the transmission housing where the PTO shaft exits, preventing oil loss from the gearbox and keeping debris from entering the bearing area. A worn seal allows oil to weep along the shaft, which can lead to low lubricant levels and eventual bearing damage. This original AGCO seal is molded to the same lip profile and spring tension as the factory component, so it maintains the correct contact pressure against the shaft without requiring shimming or adapter rings. On installation, inspect the shaft surface for scoring and replace the seal with the lip facing inward toward the oil supply.
AGCO

Product Details

Brand
AGCO
Fits

Massey ferguson

100410801085110412001204125013313514514815215415515816516823023123524024525025325526026126526827127327427528129029229329429830503060306530703080308530903095311531203120T31253503553603653753903994104304454654755605655755905925956120613061406160617061806190660675680690698699715071707180
Height
12 mm
Location
Drive system, PTO
Application
Tractors and vehicles
Product Type
Oil seal
Inner Diameter
60 mm
Outer Diameter
79 mm
Manufacturer
AGCO
