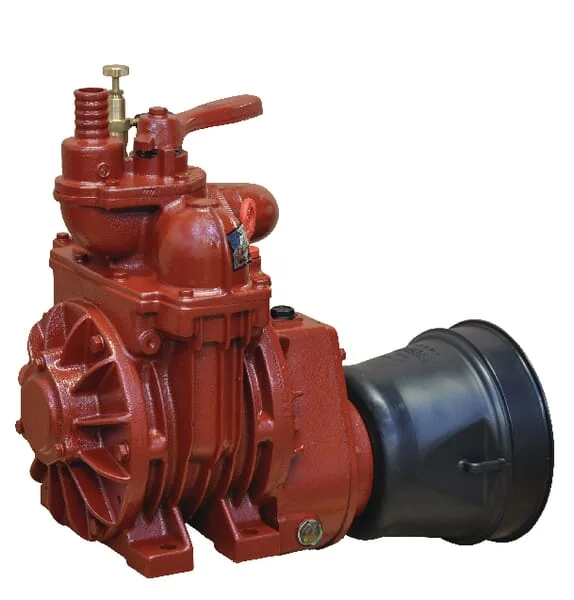

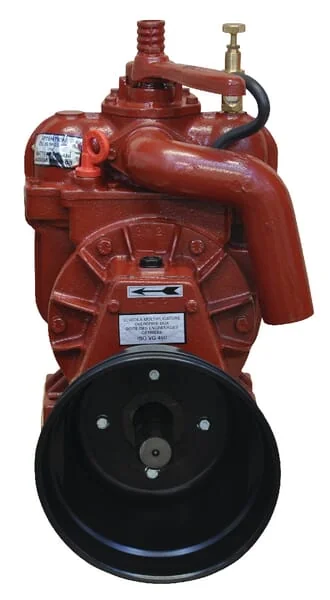

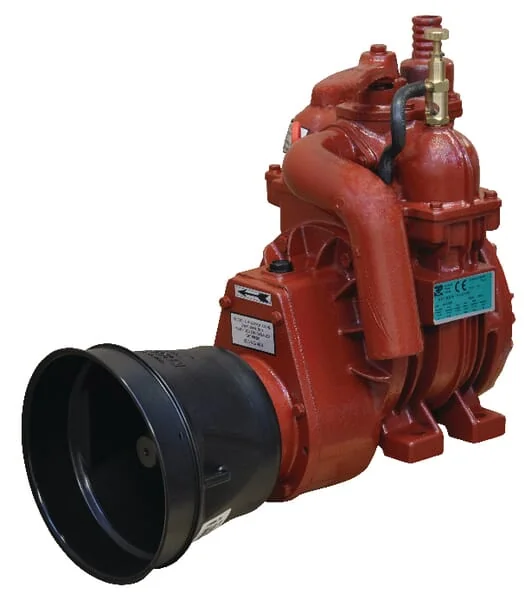

Battioni Pagani - MEC1000M - Vacuum Pump Standard Battioni Pagani
Battioni Pagani - MEC1000M - Vacuum Pump Standard Battioni Pagani
Battioni Pagani - MEC1000M - Vacuum Pump Standard Battioni Pagani
Battioni Pagani - MEC1000M - Vacuum Pump Standard Battioni Pagani
Battioni Pagani - MEC1000M - Vacuum Pump Standard Battioni Pagani
Battioni Pagani - MEC1000M - Vacuum Pump Standard Battioni Pagani
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Battioni Pagani - MEC1000M - Vacuum Pump Standard Battioni Pagani

Battioni Pagani - MEC1000M - Vacuum Pump Standard Battioni Pagani

€816.17

(Excl. VAT)

Price

(Excl. VAT)

€816.17

Product Description

Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors A test report relating to the serial number is drawn up for each pump
Battioni Pagani
Battioni-Pagani produces hydraulic systems and components for agricultural and industrial machinery. The brand specializes in high-pressure pumps, valves, and power transmission solutions. Its products are widely used in tractors, harvesters, and other heavy-duty farming equipment. Shop more than 645 genuine Battioni-pagani spare parts.

Product Details

Brand
Battioni Pagani
Unit
Each
Height
410 mm
Weight
40 kg
Benefits
As B.P. pumps are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Vane type
Standard
Drive type
PTO 540 rpm
Max vacuum
0,9 BAR
Properties
These pumps can generate both positive pressure and vacuum Oil to be used for lubricating the vanes: genuine oil from B. P. Item number: BP5070
Consists of
These pumps are supplied with standard vanes ("Long-life" vanes available on request) Without pressure relief valve and vacuum valve The pumps are delivered without lubrication oil (BP5070) Including PTO shaft cover
Total width
263 mm
Total length
395 mm
Shaft diameter
1-3/8 Inch
Technical info
Composition of the item numbers: MEC = series, 8000 = type, M = indirect drive 540 rpm, A = automatic lubrication On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation Pumps with indirect drive (M) must be driven anti-clockwise The direction of rotation is determined when the axle to be driven is aligned with the observer If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Max. shaft rotation
600 r/min
Direction of rotation
Counter-clockwise (CCW)
Max. relative pressure
1,5 BAR
Crash protection system
No
Lubrication system type
Forced
Mounting holes diameter
11 mm
Mounting holes distance
73 mm175 mm
Nominal volume flow rate
1260 l/min
Diameter of hose connection
27 mm
Ballast air injection system
No
Mounting holes to end distance
72 mm
Power requirement for max. vacuum
4 kW
Power requirement for max. pressure
7,5 kW
Mounting holes to shaft end distance
211 mm
Shaft centre to left side end distance
117 mm
Shaft centre to right side end distance
146 mm
Manufacturer
Battioni Pagani
