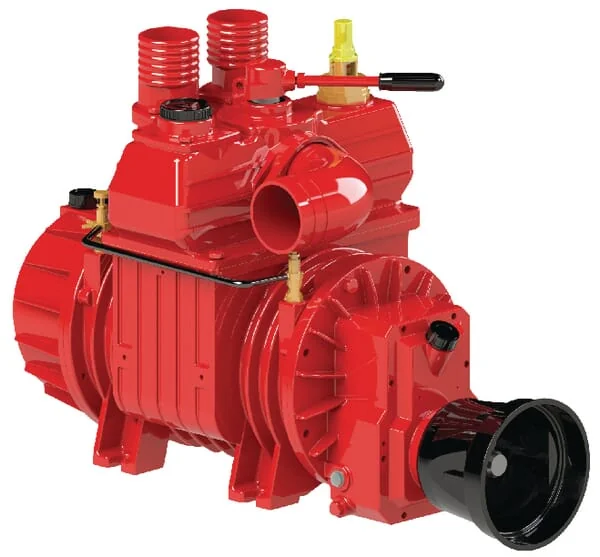

Battioni Pagani - MEC11000MDU - Vacuum Pump Double Tank Connection Battioni Pagani
Battioni Pagani - MEC11000MDU - Vacuum Pump Double Tank Connection Battioni Pagani
Battioni Pagani - MEC11000MDU - Vacuum Pump Double Tank Connection Battioni Pagani
Battioni Pagani - MEC11000MDU - Vacuum Pump Double Tank Connection Battioni Pagani
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Battioni Pagani - MEC11000MDU - Vacuum Pump Double Tank Connection Battioni Pagani

Battioni Pagani - MEC11000MDU - Vacuum Pump Double Tank Connection Battioni Pagani

€2,048.44

(Excl. VAT)

Price

(Excl. VAT)

€2,048.44

Battioni Pagani
Battioni-Pagani produces hydraulic systems and components for agricultural and industrial machinery. The brand specializes in high-pressure pumps, valves, and power transmission solutions. Its products are widely used in tractors, harvesters, and other heavy-duty farming equipment. Shop more than 645 genuine Battioni-pagani spare parts.

Product Details

Brand
Battioni Pagani
Unit
Each
Weight
209 kg
CHeight
540 mm
Vane type
Long life
Drive type
PTO 540 rpm
Max vacuum
0,9 BAR
Properties
These pumps can generate both positive pressure and vacuum
Consists of
Including PTO shaft cover Including vacuum valve Without pressure relief valve (item 0200013) These pumps are supplied with standard vanes Long-life vanes available on request Including swivelling connection pipes The pumps are delivered without lubrication oil (item BP5070)
BTotal width
490 mm
ATotal length
761 mm
Shaft diameter
1-3/8 Inch
Technical info
Structure of item number: STAR = series, 72 = type, M = indirect drive, 540 rpm, DU = double intake On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation Pumps with indirect drive (M) must be driven anti-clockwise The direction of rotation is determined when the axle to be driven is aligned with the observer If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise Oil to be used for lubricating the vanes: genuine oil from B. P. Item number: BP5070 STAR replaces the Agri- and Euro series
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Max. shaft rotation
600 r/min
Direction of rotation
Counter-clockwise (CCW)
OUpper housing height
214 mm
PRotor housing height
326 mm
Max. relative pressure
1,5 BAR
Crash protection system
Yes
Lubrication system type
Forced
IMounting holes distance
247 mm245 mm
LMounting holes diameter
18 mm
Nominal volume flow rate
10800 l/min
Ballast air injection system
No
MMounting holes to end distance
204 mm
Shaft centre to bottom distance
80 mm
Safety valve connection diameter
2 Inch
Power requirement for max. vacuum
26 kW
Power requirement for max. pressure
30 kW
Depression valve connection diameter
1-1/2 Inch
NMounting holes to shaft end distance
286 mm
XShaft centre to right side end distance
220 mm
Manufacturer
Battioni Pagani
