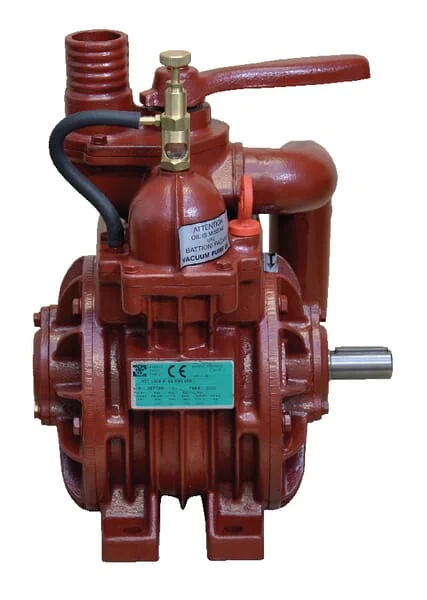

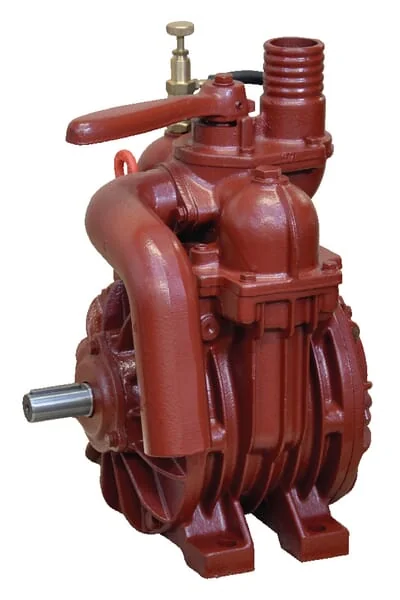

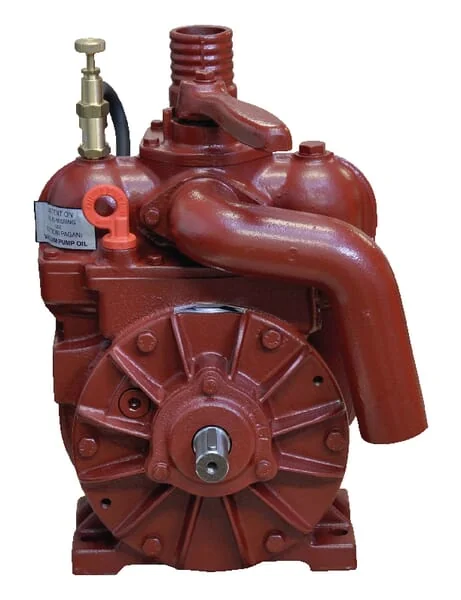

Battioni Pagani - MEC1000PL - Vacuum Pump Battioni Pagani
Battioni Pagani - MEC1000PL - Vacuum Pump Battioni Pagani
Battioni Pagani - MEC1000PL - Vacuum Pump Battioni Pagani
Battioni Pagani - MEC1000PL - Vacuum Pump Battioni Pagani
Battioni Pagani - MEC1000PL - Vacuum Pump Battioni Pagani
Battioni Pagani - MEC1000PL - Vacuum Pump Battioni Pagani
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Battioni Pagani - MEC1000PL - Vacuum Pump Battioni Pagani

Battioni Pagani - MEC1000PL - Vacuum Pump Battioni Pagani

€741.65

(Excl. VAT)

Price

(Excl. VAT)

€741.65

Product Description

Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors A test report relating to the serial number is drawn up for each pump
Battioni Pagani
Battioni-Pagani produces hydraulic systems and components for agricultural and industrial machinery. The brand specializes in high-pressure pumps, valves, and power transmission solutions. Its products are widely used in tractors, harvesters, and other heavy-duty farming equipment. Shop more than 645 genuine Battioni-pagani spare parts.

Product Details

Brand
Battioni Pagani
Unit
Each
Benefits
As B.P. pumps are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Vane type
Standard
Drive type
Pulley
Properties
These pumps can generate both positive pressure and vacuum
Consists of
These pumps are supplied with standard vanes. Long-life vanes available on request Without pressure relief valve and vacuum valve The pumps are delivered without lubrication oil (item BP5070) Without pulley
Technical info
Composition of the item numbers: MEC = series, 8000 = type, P = pulley drive Pumps with an "L" in the item number must be driven anti-clockwise; pumps without an "L" in the item number must be driven clockwise On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles Automatic lubrication available on request On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation The direction of rotation is determined when the axle to be driven is aligned with the observer Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070)
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Direction of rotation
Counter-clockwise (CCW)
Crash protection system
No
Lubrication system type
Forced
Ballast air injection system
No
Manufacturer
Battioni Pagani

Similar items you might like

  • Battioni Pagani

    Battioni Pagani - MEC11000A - Vacuum Pump STD CCW Auto-Lube Battioni Pagani

    Battioni Pagani

    €1,898.87

  • Battioni Pagani

    Battioni Pagani - MEC11000AB - Vacuum Pump STD CCW Auto-Lube And Ballast Battioni Pagani

    Battioni Pagani

    €2,397.13

  • Battioni Pagani

    Battioni Pagani - MEC11000DL - Vacuum Pump Direct Drive CCW Battioni Pagani

    Battioni Pagani

    €1,955.68

  • Battioni Pagani

    Battioni Pagani - MEC11000DLA - Vacuum Pump Direct Drive CCW Auto-Lube Battioni Pagani

    Battioni Pagani

    €2,105.95

  • Battioni Pagani

    Battioni Pagani - MEC11000DLAB - Vacuum Pump Direct Drive CCW Auto-Lube And Ballast Battioni Pagani

    Battioni Pagani

    €2,397.13

  • Battioni Pagani

    Battioni Pagani - MEC11000H - Vacuum Pump Hydraulic Drive Battioni Pagani

    Battioni Pagani

    €2,115.34

  • Battioni Pagani

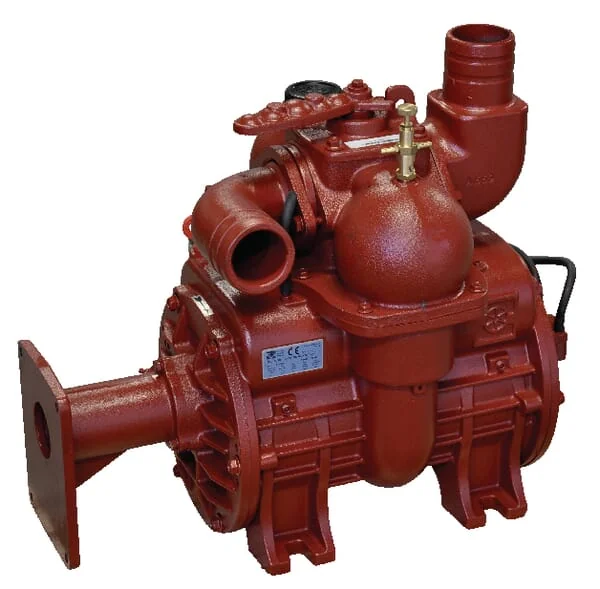

    Battioni Pagani - MEC11000HAB - Vacuum Pump Hydraulic Drive, Auto-Lube And Ballast Battioni Pagani
