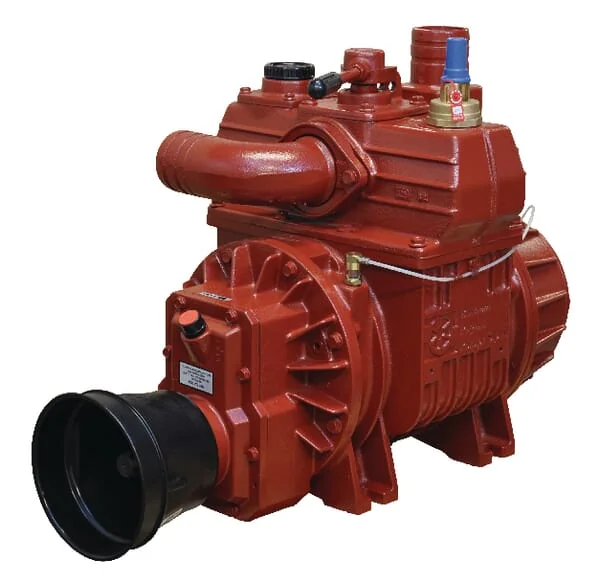

Battioni Pagani - STAR60MA - Vacuum Pump Auto-Lube. Battioni Pagani

SKU: battioni-pagani-star60ma

Battioni Pagani - STAR60MA - Vacuum Pump Auto-Lube. Battioni Pagani

€2,557.70

(excl. VAT)
RRP:€2,899.35
Save €341.54
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€2,557.70

Battioni Pagani
Battioni Pagani is an Italian company with a long-standing tradition in the production of vacuum pumps and hydraulic systems for agricultural and industrial applications. Founded in 1953 in Parma, Italy, the company has established itself as a leader in the design and manufacturing of high-performance components. Battioni Pagani is known for its robust and reliable solutions, particularly in the field of liquid manure handling and irrigation. The brand's product range primarily includes a comprehensive selection of vacuum pumps, such as the MEC and STAR series, which are widely used in vacuum tankers and agricultural sprayers. Additionally, Battioni Pagani manufactures various hydraulic components, including valves, gearboxes, and power take-off (PTO) shafts. These products are engineered to withstand demanding operational conditions and provide efficient power transmission and fluid management. Partao offers a wide array of genuine Battioni Pagani spare parts to ensure the continued performance of your agricultural machinery. Our top categories for Battioni Pagani include Air Filters, Ball Bearings, Bearing Housings, Blades & Graders, and Bolts & Fasteners, covering essential components for maintenance and repair. Over 645 genuine Battioni Pagani spare parts are available at Partao. Agricultural operators across Europe and beyond frequently choose Battioni Pagani components for their durability and efficiency in tasks such as liquid manure spreading, irrigation, and other demanding fluid transfer applications. The brand's reputation for quality makes its parts a trusted choice for maintaining the operational integrity of vacuum tankers and other specialized farm equipment.

Unit
Each
Weight
209 kg
CHeight
540 mm
Vane type
Standard
Drive type
PTO 540 rpm
Max vacuum
0,9 BAR
Properties
These pumps can generate both positive pressure and vacuum
Consists of
Including PTO shaft cover Including vacuum valve Without pressure relief valve (item 0200013) These pumps are supplied with standard vanes Long-life vanes available on request Including swivelling connection pipes The pumps are delivered without lubrication oil (item BP5070)
BTotal width
490 mm
ATotal length
761 mm
Shaft diameter
1-3/8 Inch
Technical info
Composition of the item numbers: STAR = series, 72 = type, M = indirect drive 540 rpm, A = automatic lubrication On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation Pumps with indirect drive (M) must be driven anti-clockwise The direction of rotation is determined when the axle to be driven is aligned with the observer If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070) STAR replaces the Agri- and Euro series
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Max. shaft rotation
600 r/min
Direction of rotation
Counter-clockwise (CCW)
OUpper housing height
214 mm
PRotor housing height
326 mm
Max. relative pressure
1,5 BAR
Crash protection system
No
Lubrication system type
Automatic
IMounting holes distance
247 mm245 mm
LMounting holes diameter
18 mm
Nominal volume flow rate
10800 l/min
Ballast air injection system
No
MMounting holes to end distance
204 mm
Safety valve connection diameter
2 Inch
Power requirement for max. vacuum
26 kW
Power requirement for max. pressure
30 kW
Depression valve connection diameter
1-1/2 Inch
NMounting holes to shaft end distance
286 mm
KShaft centre to left side end distance
220 mm
XShaft centre to right side end distance
220 mm
Manufacturer
Battioni Pagani
