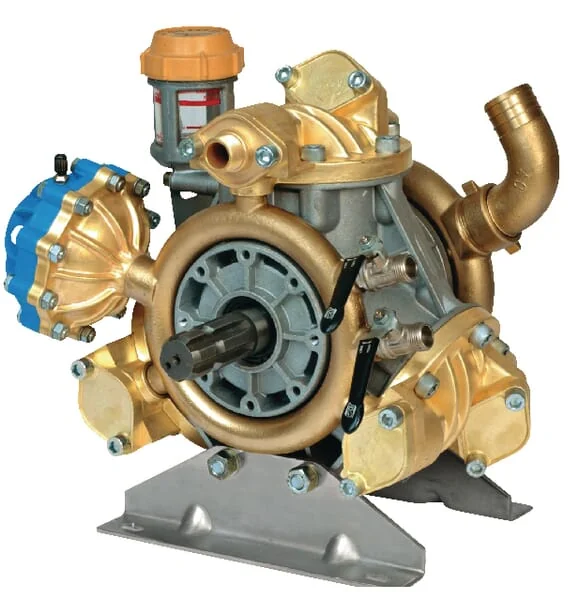

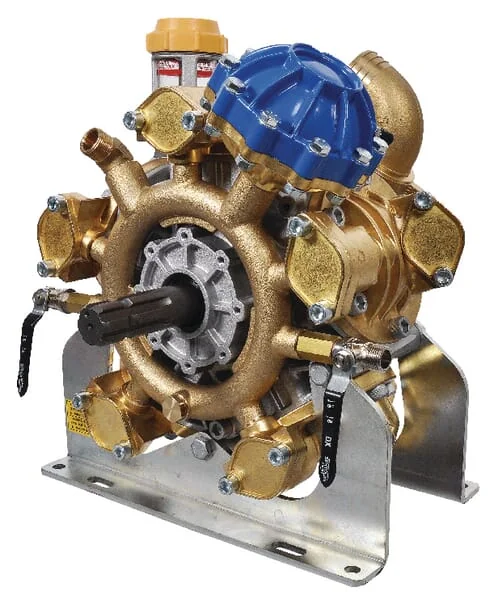

Bertolini - 485000973VD - IDB 1100-VD Bertolini Pump
Bertolini - 485000973VD - IDB 1100-VD Bertolini Pump
Bertolini - 485000973VD - IDB 1100-VD Bertolini Pump
Bertolini - 485000973VD - IDB 1100-VD Bertolini Pump
Bertolini - 485000973VD - IDB 1100-VD Bertolini Pump
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Bertolini - 485000973VD - IDB 1100-VD Bertolini Pump

Bertolini - 485000973VD - IDB 1100-VD Bertolini Pump

€1,445.67

(Excl. VAT)

Price

(Excl. VAT)

€1,445.67

Product Description

Exclusive check valve design: spheric section shaped made up of AISI 316 stainless steel Oil tank fitted with a matched diaphragm With pulsation damper Oversized / seperate suction and pressure circuits, in brass alloy, create a smooth flow of the liquid Heads constructed of brass Pre-calibrated diaphragm washer and diaphragm bolt made up of AISI 316 stainless steel
Bertolini
Bertolini manufactures agricultural machinery components and hydraulic systems for tractors and implements. The brand specializes in gearboxes, PTO shafts, and transmission parts for power transfer applications. Its products are used in tillage equipment, mowers, and other farm machinery. Shop more than 304 genuine Bertolini spare parts.

Product Details

Brand
Bertolini
Unit
Each
Power
10.2 kW
Width
416 mm
Height
371 mm
Length
355 mm
Weight
38.9 kg
Benefits
Delivering high volumetric efficiencies Ensures correct oil level No loss of pressure Perfect mechanical resistance and long life operation Corrosion proof
Flow max.
110 l/min
Ø Intake
40 mm
Ø Outlet
G 3/4 Inch
Properties
Die cast aluminium crankcase provides great strenght Crankshaft stroke reduced, which increases diaphragm life, because the diaphragms are not stressed Head and manifold made of brass
Shaft type
1 3/8" (6)
Drive shaft
1 3/8 Inch
Oil type SAE
30,00
Pressure max.
50 BAR
Rotation max.
550 r/min
Pumping height
3 m
Oil volume max.
1,81 l
Temperature max.
60 °C
Application range
For insecticides, pesticides, fungicides, etc.
Pumping height max.
1.5 m
Material piston diaphragms
BUNA-N
Manufacturer
Bertolini
