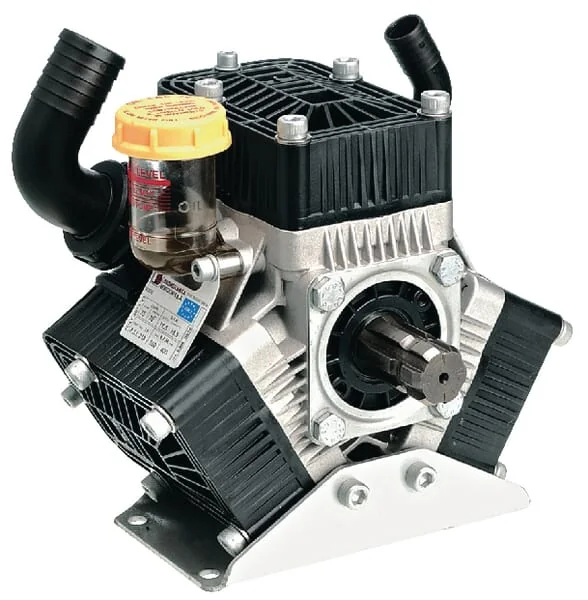

Bertolini - 635000973VS - Piston Diaphragm Pump 75l Bertolini

SKU: bertolini-635000973vs

Bertolini - 635000973VS - Piston Diaphragm Pump 75l Bertolini

€441.19

(excl. VAT)
RRP:€479.89
Save €38.68

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€441.19

Pre-calibrated diaphragm washer and diaphragm bolt made up of AISI 316 stainless steel Exclusive check valve design: spheric section shaped made up of AISI 316 stainless steel Special "Dacromet"® treatment on head bolts and mounting rails
Bertolini
Bertolini manufactures agricultural machinery components and hydraulic systems for tractors and implements. The brand specializes in gearboxes, PTO shafts, and transmission parts for power transfer applications. Its products are used in tillage equipment, mowers, and other farm machinery. Shop more than 304 genuine Bertolini spare parts.

Brand
Bertolini
Part Numbers
635000973vs
Unit
Each
Power
2.1 kW
Width
286 mm
Height
260 mm
Length
324 mm
Weight
11 kg
Details
Pre-calibrated diaphragm washer and diaphragm bolt made up of AISI 316 stainless steel Exclusive check valve design: spheric section shaped made up of AISI 316 stainless steel Special "Dacromet"® treatment on head bolts and mounting rails
Benefits
Abrasion and corrosion proof Delivering high volumetric efficiencies Wide mechanical and chemical resistance and no maintenance
Flow max.
75 l/min
Ø Intake
35 mm
Ø Outlet
25 mm
Properties
Double body head in polypropylene incorporating a die cast aluminium core Die cast aluminium crankcase incorporating a new cooling system Connecting rods of special bronze alloy Crankshaft stroke reduced, which increases diaphragm life, because the diaphragms are not stressed Exclusive technology of the piston profile to reduce friction on the diaphragm Manifold made of polypropylene
Shaft type
1 3/8" (6)
Drive shaft
1 3/8 Inch
Oil type SAE
30,00
Pressure max.
15 BAR
Rotation max.
550 r/min
Pumping height
3 m
Oil volume max.
0,7 l
Temperature max.
60 °C
Application range
For insecticides, pesticides, fungicides and weed killing products For N.Phuric acid, solvents, acids, hydrocarbons, alcohol, etc.
Pumping height max.
1.5 m
Material piston diaphragms
BUNA-N
Manufacturer
Bertolini
