Bondioli Pavesi - ZBMS6065373025F - Spur Gear M7

SKU: bondioli-pavesi-zbms6065373025f

Bondioli Pavesi - ZBMS6065373025F - Spur Gear M7

€1,398.85€1,195.60 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,398.85

Brand
bondioli-pavesi
Oil Type
SAE90 EP
Gear Ratio
1:2.5
N1 (1/min.)
540 / 1000
N2 (1/min.)
1350 / 2500
Speed Limit
approx. 3000 1/min.
Torque (Nm)
540 1/min: 780 / 310 1000 1/min: 773 / 306
Transmission
1:2.5
Axle spacing (mm)
105
Axial distance (mm)
105
Max Power (HP / kW)
540 1/min: 60/ 44 1000 1/min: 110 / 81
Gear pump connection
16/32 inch z15
Oil Filling Capacity
approx. 1.5l / 0.8l
Oil Filling Quantity (l)
approx. 1.5 / 0.8 depending on the installation
Manufacturer
bondioli-pavesi

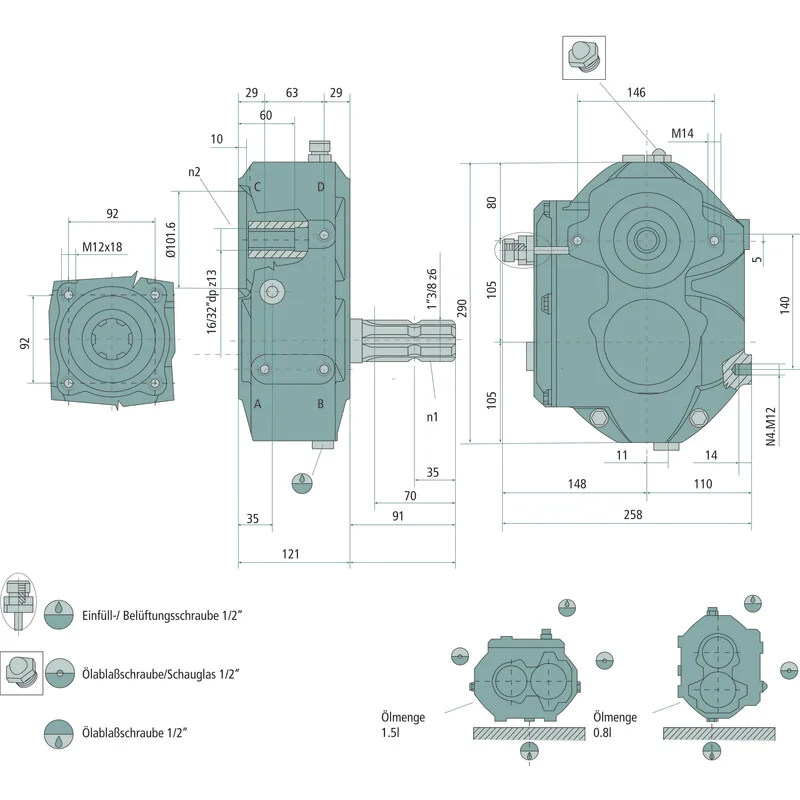

This reverse gearbox has a grey cast iron housing and case-hardened gearing, with a speed limit of approximately 3000 rpm. It features a gear pump connection with 15 teeth and is used in general drives for agricultural, construction, and forestry equipment.
Bondioli Pavesi
Bondioli-pavesi produces power transmission systems and components for agricultural machinery. The brand specializes in gearboxes, PTO shafts, and hydraulic pumps used in tractors and implements. Its solutions ensure reliable power transfer in demanding farming operations. Shop more than 3,346 genuine Bondioli-pavesi spare parts.
