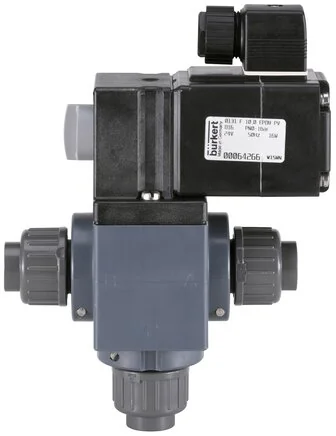

Burkert - 0131-F-10,0-AA-PV-KM24-024/UC--55770 - 3/2-Way Solenoid Valve

SKU: burkert-0131-f-10-0-aa-pv-km24-024-uc-55770

Burkert - 0131-F-10,0-AA-PV-KM24-024/UC--55770 - 3/2-Way Solenoid Valve

€644.18€550.58 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€644.18

Brand
Burkert
CE Mark
Yes
AC Voltage
Yes
DC Voltage
Yes
Coil Size (mm)
49
Rated Power (W)
100
Mode Of Operation
F - Verteilerventil - in Ruhestellung Druckanschluss 1 (P/IN) nach Arbeitsanschluss 2 (B/NO) geöffnet, Arbeitsanschluss 4 (A/NC) ges
Voltage Frequency
50/60 Hz
Material - Seal Seat
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Line Connection 2 Type
Klebemuffe
Line Connection 2 Size DN
DN 10
Nominal Pressure Min (bar)
0
Sealing To Outside Material
EPDM (Ethylen-Propylen-Dien-Kautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
50
Medium Temperature Min (°C)
-10
Ambient Temperature Max (°C)
50
Ambient Temperature Min (°C)
-10
Main Valve Nominal Size 1 (inch)
3/8
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
10
Nominal Pressure Max (Liquid) (bar)
1
Main Valve Material, Media-contacting
PVC (Polyvinylchlorid)
Manufacturer
Burkert
