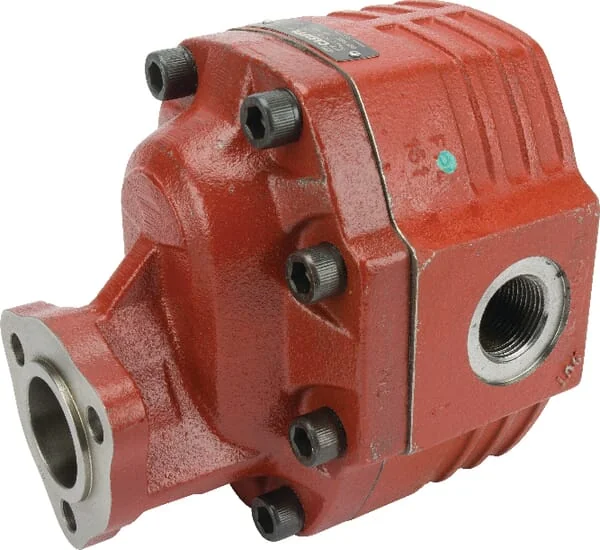

Casappa - FP40109D - PUMP FP40109D RIGHT
Casappa - FP40109D - PUMP FP40109D RIGHT
Casappa - FP40109D - PUMP FP40109D RIGHT
Casappa - FP40109D - PUMP FP40109D RIGHT
Casappa - FP40109D - PUMP FP40109D RIGHT
Casappa - FP40109D - PUMP FP40109D RIGHT

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping

Pay Securely with

Casappa - FP40109D - PUMP FP40109D RIGHT

Casappa - FP40109D - PUMP FP40109D RIGHT

€711.32

(Excl. VAT)

Price

(Excl. VAT)

€711.32

Casappa
Casappa specializes in hydraulic systems and components for agricultural machinery, including pumps, motors, and valves. The brand is known for its high-performance solutions that enhance the efficiency of tractors and farming equipment. Its products are widely used in irrigation systems, harvesters, and other heavy-duty agricultural applications. Shop more than 567 genuine Casappa spare parts.

Product Details

Brand
Casappa
Unit
Each
Details
High performance even at low speeds Can be mounted directly on the PTO shaft
Benefits
Wide range of applications Compact design
Properties
Different connection positions Low noise emission Customer-specific design possible
Shaft type
Splined
Flange code
T1
Displacement
108,9 cm³/rev
Sealing type
Standard
Port position
Side
AHousing length
204,5 mm
Housing material
Steel
Long description
Formula 40
Max pressure peak
280 BAR
Mounting diameter
52 mm
Max rotation speed
2700 r/min
Main port thread type
G
Pressure port thread type
G
CMain port thread diameter
1 Inch
Prefered rotation direction
Clockwise (CW)
Pressure port thread diameter
1-1/4 Inch
Flange and back cover material
Steel
Max. continous working pressure
240 BAR
Max intermittend working pressure
260 BAR
BConnection port to flange distance
129,5 mm
Manufacturer
Casappa
