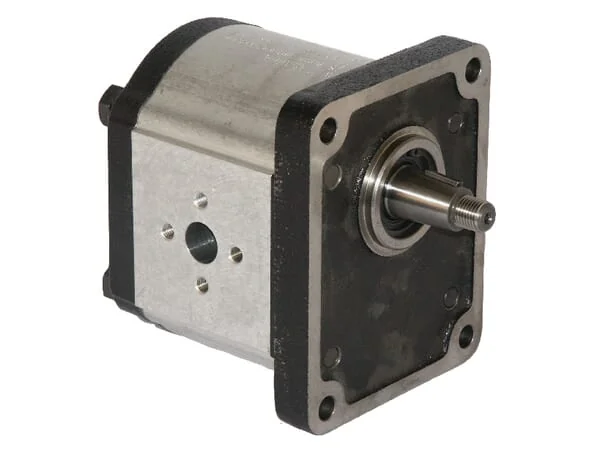

Casappa - PLM3022R83E3 - GEAR MOTOR PLM30.22R0-83E3-
Casappa - PLM3022R83E3 - GEAR MOTOR PLM30.22R0-83E3-
Casappa - PLM3022R83E3 - GEAR MOTOR PLM30.22R0-83E3-
Casappa - PLM3022R83E3 - GEAR MOTOR PLM30.22R0-83E3-
Casappa - PLM3022R83E3 - GEAR MOTOR PLM30.22R0-83E3-
Casappa - PLM3022R83E3 - GEAR MOTOR PLM30.22R0-83E3-

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

Casappa - PLM3022R83E3 - GEAR MOTOR PLM30.22R0-83E3-

Casappa - PLM3022R83E3 - GEAR MOTOR PLM30.22R0-83E3-

€417.25

(Excl. VAT)

Price

(Excl. VAT)

€417.25

Casappa
Casappa specializes in hydraulic systems and components for agricultural machinery, including pumps, motors, and valves. The brand is known for its high-performance solutions that enhance the efficiency of tractors and farming equipment. Its products are widely used in irrigation systems, harvesters, and other heavy-duty agricultural applications. Shop more than 567 genuine Casappa spare parts.

Product Details

Brand
Casappa
Note
Always connect leakage oil line
Unit
Each
Details
Various connection options
Benefits
Wide range of applications Can be used in challenging environmental conditions
Material
Pump housing: Aluminium- Flange and back cover: Steel
P1 (bar)
250 BAR
Connection
European 4-hole flange
Properties
Electrohydraulic ventilator drive Customer-specific design possible
Shaft type
Tapered shaft 1 : 8
Length body
130 mm
Pressure max.
Pressure continuous (p1): 250 BAR
Rotation max.
3000 r/min
Stroke volume
21,99 cm³/rev
Suction flange
3 G-12
Pressure flange
2 G-12
Application range
Mobile applications Industrial applications
Rotational speed min.
350 r/min
Length flange to center bore
63 mm
Center to center suction side
51 mm
Center to center pressure side
40 mm
Manufacturer
Casappa
