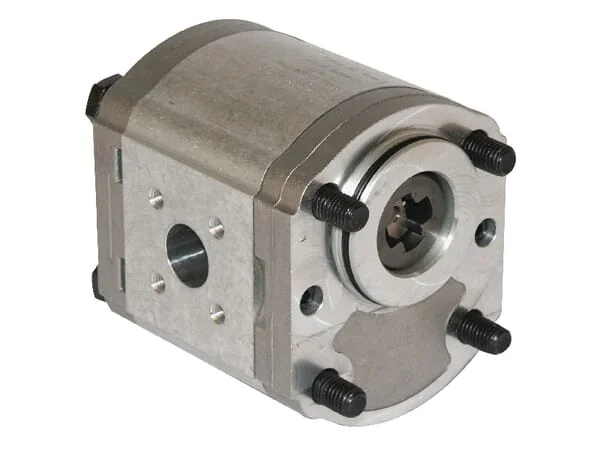

Casappa - PLP2016D095B6 - HYDRAULIC PUMP-16/CC-DEUTZ-DX140-TRACTOR
Casappa - PLP2016D095B6 - HYDRAULIC PUMP-16/CC-DEUTZ-DX140-TRACTOR
Casappa - PLP2016D095B6 - HYDRAULIC PUMP-16/CC-DEUTZ-DX140-TRACTOR
Casappa - PLP2016D095B6 - HYDRAULIC PUMP-16/CC-DEUTZ-DX140-TRACTOR
Casappa - PLP2016D095B6 - HYDRAULIC PUMP-16/CC-DEUTZ-DX140-TRACTOR
Casappa - PLP2016D095B6 - HYDRAULIC PUMP-16/CC-DEUTZ-DX140-TRACTOR

In stock - ready to ship

Order now for delivery between 9 May and 13 May
Free shipping

Pay Securely with

Casappa - PLP2016D095B6 - HYDRAULIC PUMP-16/CC-DEUTZ-DX140-TRACTOR

Casappa - PLP2016D095B6 - HYDRAULIC PUMP-16/CC-DEUTZ-DX140-TRACTOR

€201.30

(Excl. VAT)

Price

(Excl. VAT)

€201.30

Casappa
Casappa specializes in hydraulic systems and components for agricultural machinery, including pumps, motors, and valves. The brand is known for its high-performance solutions that enhance the efficiency of tractors and farming equipment. Its products are widely used in irrigation systems, harvesters, and other heavy-duty agricultural applications. Shop more than 565 genuine Casappa spare parts.

Product Details

Brand
Casappa
Equivalent OEM Part Numbers

Deutz Fahr

04374352
Fits

Deutz Fahr

DX140
Unit
Each
Details
Various connection options Outer housing pivoted
Benefits
Wide range of applications Can be used in challenging environmental conditions
Properties
Consists of 3 parts Electrohydraulic ventilator drive Customer-specific design possible
Shaft type
Oldham coupling
Flange code
B6
Displacement
16,85 cm³/rev
Housing length
110,7 mm
Flange type norm
German
Housing material
Aluminium
Application range
Mobile applications Industrial applications
Max pressure peak
300 BAR
Mounting diameter
52 mm
Max rotation speed
3000 r/min
Number of mounting holes
4
Prefered rotation direction
Clockwise (CW)
Flange and back cover material
Steel
Max. continous working pressure
250 BAR
Max intermittend working pressure
280 BAR
BConnection port to flange distance
52,5 mm
DSuction port bolts circle diameter
40 mm
EPressure port bolts circle diameter
35 mm
Manufacturer
Casappa
