Danfoss - CB10AV2B1E1002 - Counter Balance 1x CB10AV2B1E1 A08

OEM Supplier

SKU: danfoss-cb10av2b1e1002

Danfoss - CB10AV2B1E1002 - Counter Balance 1x CB10AV2B1E1 A08

€225.56

(excl. VAT)
RRP:€239.27
Save €13.71
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€225.56

Danfoss
Danfoss A/S is a global leader in climate and energy-efficient solutions, founded in 1933 by Mads Clausen on his parents' farm in Nordborg, Denmark. The company began with the invention of the expansion valve for refrigeration systems and has since grown into a multinational corporation. Headquartered in Nordborg, Denmark, Danfoss remains a privately held company, known for its innovative approach to engineering and sustainable technologies. Danfoss offers a broad portfolio of products across various segments, including heating, cooling, power solutions, and drives. In the agricultural sector, its hydraulic and electronic control systems are vital components for modern machinery. The brand is recognized for its advanced hydrostatic transmissions, such as the H1 series, and its comprehensive range of hydraulic pumps, motors, valves, and steering components, which enhance precision and efficiency in tractors, harvesters, and other heavy equipment. Partao provides a wide selection of genuine Danfoss spare parts, including Seal Kits, Air Filters, Ball Bearings, Bearing Housings, and Bolts & Fasteners. Over 11,238 genuine Danfoss spare parts are available at Partao. Agricultural professionals worldwide choose Danfoss components for their robust construction, advanced control capabilities, and contribution to operational efficiency. The brand's commitment to developing intelligent and energy-saving solutions helps farmers and operators optimize their machinery's performance, reduce fuel consumption, and achieve greater productivity in demanding field conditions.

Brand
Type
Single
Unit
Each
Benefits
Allows smooth, controlled movements and accurate positioning of pulling and pushing loads
Material
Aluminium
Properties
Line breakage protection function Protects against pressure peaks caused by external forces Protects consumer against cavitation Opening pressure: depends on pressure setting, load pressure and control pressure ratio
Consists of
Cartridge Housing
Pilot ratio
4.5:1.0

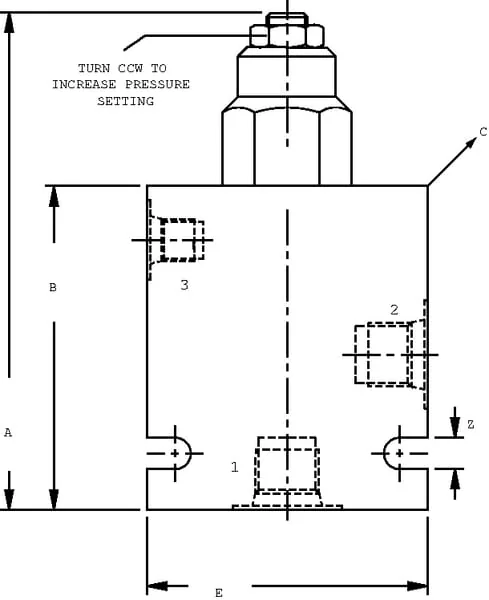

ATotal length
70 mm
BTotal height
70 mm
Max flow rate
60 l/min
Technical info
HV: hydraulically released spring chamber; A, B and T must be connected to each other in the neutral position AV: vented spring chamber; A and B can be locked in the neutral position Pressure setting must be approx. 30% higher than the maximum load pressure Single-acting, cartridge construction Free flow from 2 to 1
Opening pressure
22 BAR
Sealing material
Buna-N
Application range
High pressure and medium volume flow Telescopic loaders Forklifts Front loaders Crane applications
Max working pressure
250 BAR
Number of connections
1
Connections thread type
BSP
Connections thread diameter
1/2 Inch
Manufacturer
Danfoss
