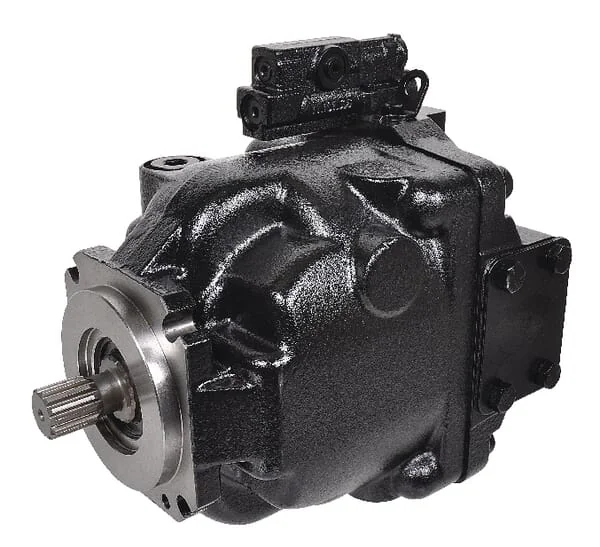

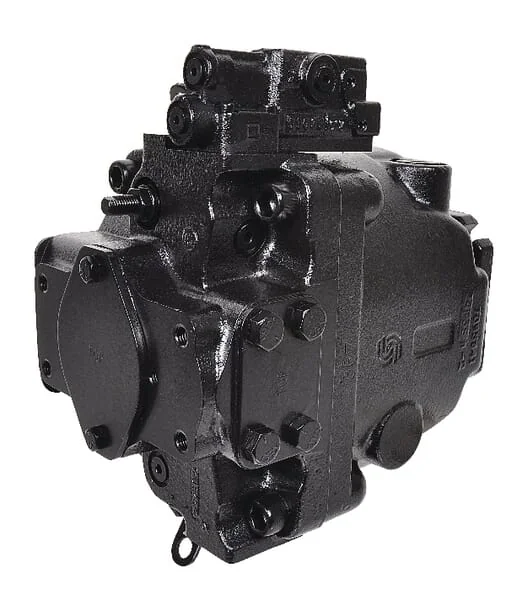

Danfoss - ERR100LS005 - Piston Pump 100 CC Load Sensing
Danfoss - ERR100LS005 - Piston Pump 100 CC Load Sensing
Danfoss - ERR100LS005 - Piston Pump 100 CC Load Sensing
Danfoss - ERR100LS005 - Piston Pump 100 CC Load Sensing
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Danfoss - ERR100LS005 - Piston Pump 100 CC Load Sensing

Danfoss - ERR100LS005 - Piston Pump 100 CC Load Sensing

€1,910.54

(Excl. VAT)

Price

(Excl. VAT)

€1,910.54

Danfoss
Danfoss develops advanced hydraulic and electronic control systems for agricultural machinery, including tractors and harvesters. The brand is known for its energy-efficient solutions, such as pumps, valves, and power units. Its technologies optimize precision and productivity in modern farming operations. Shop more than 1,238 genuine Danfoss spare parts.

Product Details

Brand
Danfoss
Note
normally on stock
Unit
Each
Veer
310 BAR
Control
LS
Benefits
Extremely reliable Various pump controllers available Energy saving
ID number
83017879
Properties
Proven quality Long service life Very reliable Low noise emission Quick response time
Shaft type
S1 = Spline shaft SAE-C Z=14 12/24
Pressure max.
20-260 BAR
Stroke volume
100 cm³/rev
Technical info
Support bearing required for use of v-belt drive
Housing material
Cast iron
Sealing material
Viton
Application range
Stationary systems Mobile systems
Master model code
ER-R-100B-LS-26-20-NN-N-3-S1RP
Max pressure peak
400 BAR
Max rotation speed
2450 r/min
Min rotation speed
500 r/min
Direction of rotation
CW
Displacement per stroke
100 cm³
Prefered rotation direction
Clockwise (CW)
Suitable for original number
83017879
Max continous working pressure
310 BAR
Manufacturer
Danfoss

Similar items you might like

  • Danfoss

    Danfoss - EVH06C5F24DA00 - Valve 2/2 EVH06/C5-F-24

    Danfoss

    €130.08

  • Danfoss

    Danfoss - EVH06D512CA00 - 3/2 Valve EVH06/D5-12CA-00

    Danfoss

    €127.77

  • Danfoss

    Danfoss - FRR074LS002 - Piston Pump 74 CC Load Sensing

    Danfoss

    €2,085.81

  • Danfoss

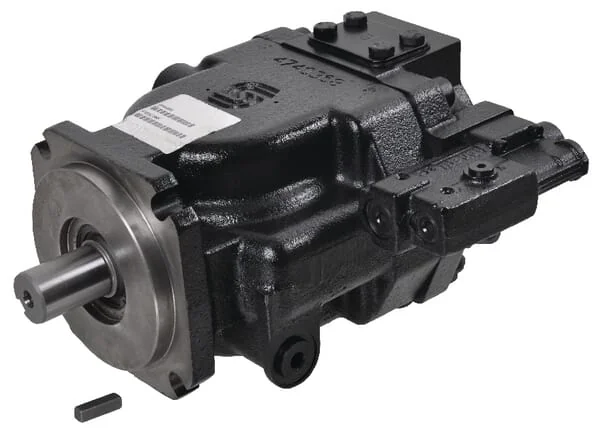

    Danfoss - FRR090LS004 - Piston Pump 90CC Load Sensing
