Di Natale Bertelli - TC2034 - Telescopic Cylinder Ball Head

SKU: di-natale-bertelli-tc2034

Di Natale Bertelli - TC2034 - Telescopic Cylinder Ball Head

€407.75€348.50 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€407.75

Part Numbers
TC2034
Unit
Each
Stroke
790 mm
Weight
18 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629

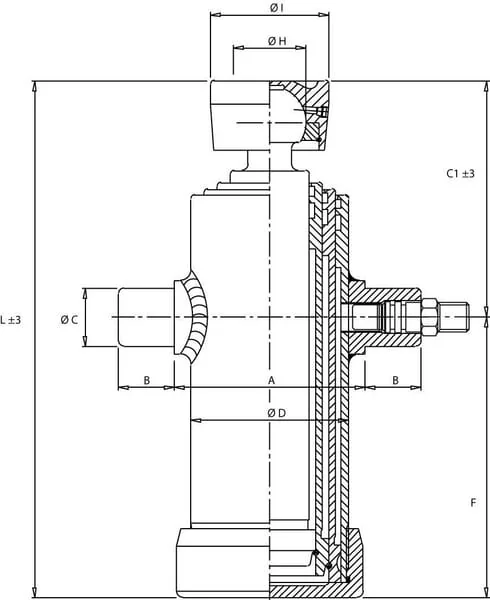

LMin. length
417 mm
Oil capacity
2,5 l
Max. capacity
5 t
Number of stages
3
Sealing material
Polyurethane
Stage 1 diameter
46 mm
Stage 2 diameter
61 mm
Stage 3 diameter
76 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
95 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
35 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
5,2 t
Max. capacity - stage 3
8,1 t
Max. capacity at 180 bar
8,1 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
AMin. mounting holes distance
115 mm
Mounting type - rod connection
Ball
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
112 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
142 mm
FMounting hole to swivel tap distance
275 mm
HMounting hole diameter - rod connection
45 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale Bertelli

The Di Natale-Bertelli TC2034 is a genuine single-acting, 3-stage telescopic hydraulic cylinder, specifically designed with ball joint mounting for versatile use in agricultural and industrial machinery. This robust cylinder offers a total stroke of 800 mm and a compact closed length of 400 mm, ensuring reliable hydraulic power. It is engineered to operate efficiently under a maximum pressure of 200 bar, making it suitable for demanding applications.
