Di Natale Bertelli - TC4042 - Telescopic Cylinder Ball
Di Natale Bertelli - TC4042 - Telescopic Cylinder Ball
Di Natale Bertelli - TC4042 - Telescopic Cylinder Ball
Di Natale Bertelli - TC4042 - Telescopic Cylinder Ball

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

Di Natale Bertelli - TC4042 - Telescopic Cylinder Ball

Di Natale Bertelli - TC4042 - Telescopic Cylinder Ball

€633.89

(Excl. VAT)

Price

(Excl. VAT)

€633.89

Product Description

The Di Natale-Bertelli TC4042 is a genuine 4-stage telescopic hydraulic cylinder designed for agricultural and industrial applications. Featuring a 40mm rod diameter, 100mm tube diameter, and a 1000mm stroke, this robust cylinder provides a closed length of 420mm and an open length of 1420mm. It has a lifting capacity of 7.8 tonnes and is equipped with a ball joint mounting for versatile installation. Weighing 25 kg, it ensures reliable performance in demanding environments.
Di Natale Bertelli

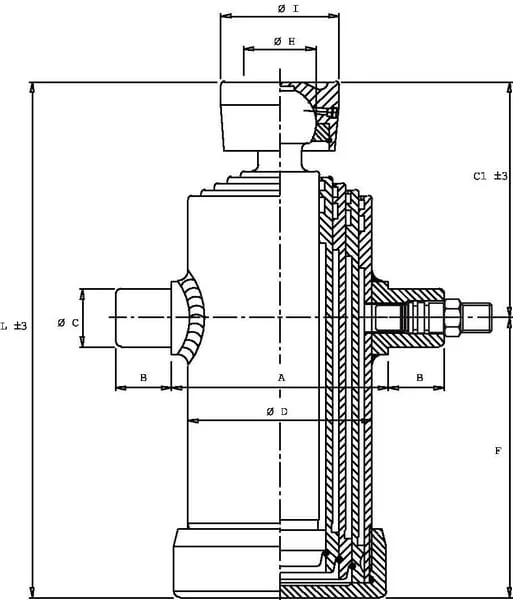

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
1220 mm
Weight
53 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
487 mm
Oil capacity
9,7 l
Max. capacity
14 t
Number of stages
4
Sealing material
Polyurethane
Stage 1 diameter
68 mm
Stage 2 diameter
88 mm
Stage 3 diameter
107 mm
Stage 4 diameter
126 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
152 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
45 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
45 mm
Max. capacity - stage 2
10,9 t
Max. capacity - stage 3
16,1 t
Max. capacity - stage 4
22,4 t
Max. capacity at 180 bar
22,4 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
AMin. mounting holes distance
175 mm
Mounting type - rod connection
Ball
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
95 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
162 mm
FMounting hole to swivel tap distance
325 mm
HMounting hole diameter - rod connection
55 mm
Mounting hole diameter - cylinder connection
45 mm
Manufacturer
Di Natale-Bertelli
