Di Natale Bertelli - TC4048 - Telescopic Cylinder TC 4048 Ball
Di Natale Bertelli - TC4048 - Telescopic Cylinder TC 4048 Ball
Di Natale Bertelli - TC4048 - Telescopic Cylinder TC 4048 Ball
Di Natale Bertelli - TC4048 - Telescopic Cylinder TC 4048 Ball

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

Di Natale Bertelli - TC4048 - Telescopic Cylinder TC 4048 Ball

Di Natale Bertelli - TC4048 - Telescopic Cylinder TC 4048 Ball

€1,508.08

(Excl. VAT)

Price

(Excl. VAT)

€1,508.08

Product Description

The Di Natale-Bertelli TC4048 is a genuine single-acting, 4-stage telescopic hydraulic cylinder designed with ball joints on both the body and rod ends. It features a 1200 mm stroke, an outer diameter of 100 mm, a rod diameter of 40 mm, and a closed center distance of 510 mm, ensuring reliable performance in various agricultural and industrial applications.
Di Natale Bertelli

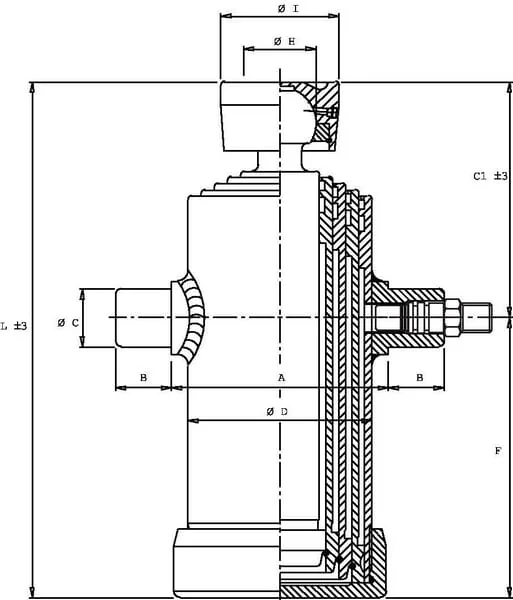

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
1920 mm
Weight
102 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
698 mm
Oil capacity
29,7 l
Max. capacity
25 t
Number of stages
4
Sealing material
Polyurethane
Stage 1 diameter
107 mm
Stage 2 diameter
126 mm
Stage 3 diameter
145 mm
Stage 4 diameter
165 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
190 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
50 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
45 mm
Max. capacity - stage 2
22,4 t
Max. capacity - stage 3
29,7 t
Max. capacity - stage 4
38,4 t
Max. capacity at 180 bar
38,4 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
AMin. mounting holes distance
230 mm
Mounting type - rod connection
Ball
Oil connection thread diameter
M22
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
150 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
253 mm
FMounting hole to swivel tap distance
445 mm
HMounting hole diameter - rod connection
73 mm
Mounting hole diameter - cylinder connection
45 mm
Manufacturer
Di Natale-Bertelli
