Di Natale Bertelli - TC4062F - Telescopic Cylinder TC 4062 Eye
Di Natale Bertelli - TC4062F - Telescopic Cylinder TC 4062 Eye
Di Natale Bertelli - TC4062F - Telescopic Cylinder TC 4062 Eye
Di Natale Bertelli - TC4062F - Telescopic Cylinder TC 4062 Eye
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Di Natale Bertelli - TC4062F - Telescopic Cylinder TC 4062 Eye

Di Natale Bertelli - TC4062F - Telescopic Cylinder TC 4062 Eye

€1,647.15

(Excl. VAT)

Price

(Excl. VAT)

€1,647.15

Product Description

The Di Natale-Bertelli TC4062F is a genuine 4-stage telescopic hydraulic cylinder, engineered for robust performance in agricultural and industrial machinery. It features a 1500mm stroke and 620mm closed centers, providing efficient extension and retraction. With a 40mm rod diameter and 30mm eye diameters, it ensures secure mounting and durability. The cylinder operates at a working pressure of 180 bar, with a maximum pressure of 250 bar, and has an oil capacity of 10.5 liters.
Di Natale Bertelli

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
2910 mm
Weight
122 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629

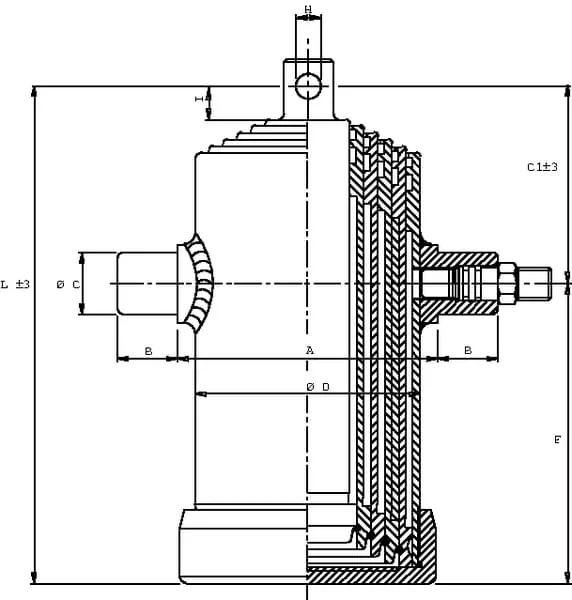

LMin. length
653 mm
Oil capacity
34,6 l
Number of stages
6
Sealing material
Polyurethane
Stage 1 diameter
68 mm
Stage 2 diameter
88 mm
Stage 3 diameter
107 mm
Stage 4 diameter
126 mm
Stage 5 diameter
145 mm
Stage 6 diameter
165 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
190 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
50 mm
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
45 mm
Max. capacity - stage 2
10,9 t
Max. capacity - stage 3
16,1 t
Max. capacity - stage 4
22,4 t
Max. capacity - stage 5
29,7 t
Max. capacity - stage 6
38,4 t
Max. capacity at 180 bar
38,4 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
Mounting type - rod connection
Bore
Oil connection thread diameter
M22
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
42 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
208 mm
FMounting hole to swivel tap distance
445 mm
HMounting hole diameter - rod connection
36 mm
Mounting hole diameter - cylinder connection
45 mm
Manufacturer
Di Natale-Bertelli
