Di Natale Bertelli - TC4065F - Telescopic Cylinder TC 4065 Eye
Di Natale Bertelli - TC4065F - Telescopic Cylinder TC 4065 Eye
Di Natale Bertelli - TC4065F - Telescopic Cylinder TC 4065 Eye
Di Natale Bertelli - TC4065F - Telescopic Cylinder TC 4065 Eye
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Di Natale Bertelli - TC4065F - Telescopic Cylinder TC 4065 Eye

Di Natale Bertelli - TC4065F - Telescopic Cylinder TC 4065 Eye

€2,128.66

(Excl. VAT)

Price

(Excl. VAT)

€2,128.66

Product Description

The Di Natale-Bertelli TC4065F is a genuine 4-stage, double-acting telescopic cylinder designed for demanding agricultural and industrial applications. Featuring a 1000 mm stroke and a compact 650 mm closed length, this cylinder offers reliable performance. It includes an eye-end mounting with a 25 mm pin diameter and operates at a maximum working pressure of 200 bar.
Di Natale Bertelli

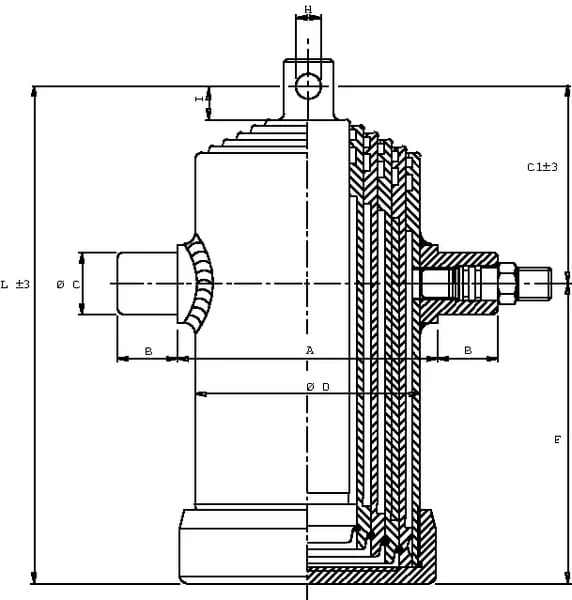

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
3765 mm
Weight
153 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
815 mm
Oil capacity
44 l
Number of stages
6
Sealing material
Polyurethane
Stage 1 diameter
68 mm
Stage 2 diameter
88 mm
Stage 3 diameter
107 mm
Stage 4 diameter
126 mm
Stage 5 diameter
145 mm
Stage 6 diameter
165 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
190 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
50 mm
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
45 mm
Max. capacity - stage 2
10,9 t
Max. capacity - stage 3
16,1 t
Max. capacity - stage 4
22,4 t
Max. capacity - stage 5
29,7 t
Max. capacity - stage 6
38,4 t
Max. capacity at 180 bar
38,4 t
Oil connection thread type
Inch
Mounting type - rod connection
Bore
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
35 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
248 mm
FMounting hole to swivel tap distance
603 mm
HMounting hole diameter - rod connection
36 mm
Mounting hole diameter - cylinder connection
45 mm
Mounting thread diameter - cylinder connection
3/4 Inch
Manufacturer
Di Natale-Bertelli
