Di Natale Bertelli - TC4053F - Telescopic Cylinder TC 4053 Eye
Di Natale Bertelli - TC4053F - Telescopic Cylinder TC 4053 Eye
Di Natale Bertelli - TC4053F - Telescopic Cylinder TC 4053 Eye
Di Natale Bertelli - TC4053F - Telescopic Cylinder TC 4053 Eye
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Di Natale Bertelli - TC4053F - Telescopic Cylinder TC 4053 Eye

Di Natale Bertelli - TC4053F - Telescopic Cylinder TC 4053 Eye

€1,541.03

(Excl. VAT)

Price

(Excl. VAT)

€1,541.03

Product Description

The Di Natale-Bertelli TC4053F is a robust telescopic cylinder designed for demanding agricultural and industrial machinery. Featuring a durable construction and eye mounting, this genuine Di Natale-Bertelli component ensures reliable hydraulic performance and extended service life in various heavy-duty applications. Engineered for precision and strength, it provides efficient lifting and pushing capabilities.
Di Natale Bertelli

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
2450 mm
Weight
101 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629

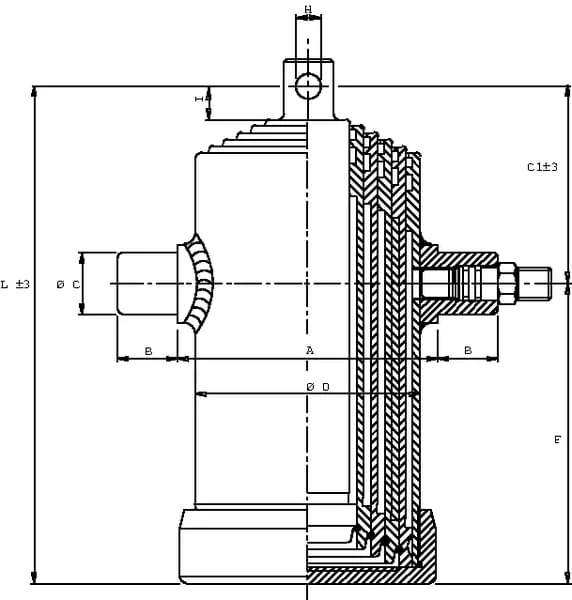

LMin. length
655 mm
Oil capacity
32,8 l
Number of stages
5
Sealing material
Polyurethane
Stage 1 diameter
88 mm
Stage 2 diameter
107 mm
Stage 3 diameter
126 mm
Stage 4 diameter
145 mm
Stage 5 diameter
165 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
190 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
50 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
45 mm
Max. capacity - stage 2
16,1 t
Max. capacity - stage 3
22,4 t
Max. capacity - stage 4
29,7 t
Max. capacity - stage 5
38,4 t
Max. capacity at 180 bar
38,4 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
Mounting type - rod connection
Bore
Oil connection thread diameter
M22
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
42 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
205 mm
FMounting hole to swivel tap distance
440 mm
HMounting hole diameter - rod connection
36 mm
Mounting hole diameter - cylinder connection
45 mm
Manufacturer
Di Natale-Bertelli
