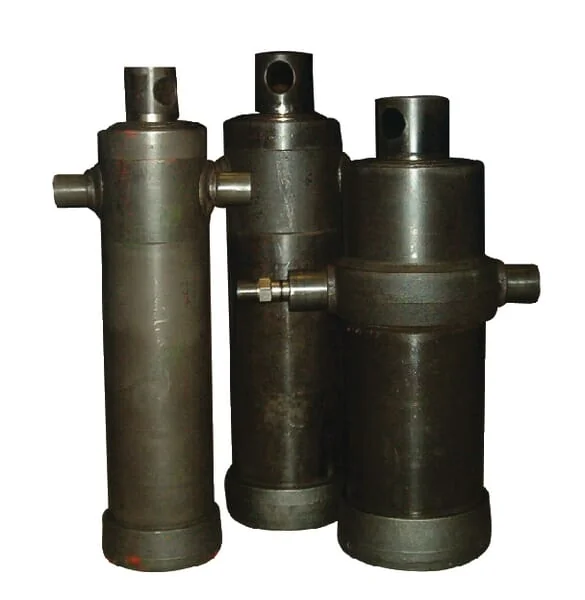

Di Natale Bertelli - TC4046F - Telescopic Cylinder TC 4046 Eye
Di Natale Bertelli - TC4046F - Telescopic Cylinder TC 4046 Eye
Di Natale Bertelli - TC4046F - Telescopic Cylinder TC 4046 Eye
Di Natale Bertelli - TC4046F - Telescopic Cylinder TC 4046 Eye
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Di Natale Bertelli - TC4046F - Telescopic Cylinder TC 4046 Eye

Di Natale Bertelli - TC4046F - Telescopic Cylinder TC 4046 Eye

€1,076.19

(Excl. VAT)

Price

(Excl. VAT)

€1,076.19

Product Description

The Di Natale Bertelli TC4046F is a genuine 4-stage single-acting telescopic cylinder, engineered for robust performance in agricultural and industrial applications. Featuring a precise 1150mm stroke and a 25.4mm eye diameter, this cylinder provides reliable linear actuation. Its closed length is 460mm, extending to an open length of 1610mm, with an outer barrel diameter of 100mm and a smallest stage barrel diameter of 40mm.
Di Natale Bertelli

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
1690 mm
Weight
72 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
570 mm
Oil capacity
19 l
Number of stages
4
Sealing material
Polyurethane
Stage 1 diameter
88 mm
Stage 2 diameter
107 mm
Stage 3 diameter
126 mm
Stage 4 diameter
145 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
170 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
50 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
45 mm
Max. capacity - stage 2
16,1 t
Max. capacity - stage 3
22,4 t
Max. capacity - stage 4
29,7 t
Max. capacity at 180 bar
29,7 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
Mounting type - rod connection
Bore
Oil connection thread diameter
M22
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
42 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
200 mm
FMounting hole to swivel tap distance
370 mm
HMounting hole diameter - rod connection
36 mm
Mounting hole diameter - cylinder connection
45 mm
Manufacturer
Di Natale-Bertelli
