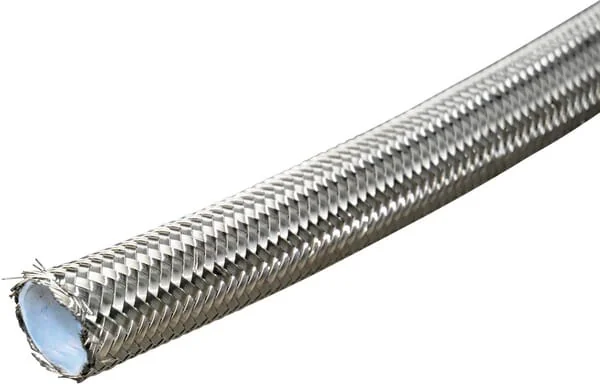

Dicsa - PTFE2DN13 - Dicsa Hydraulic Hose DN13 Stainless Steel
Dicsa - PTFE2DN13 - Dicsa Hydraulic Hose DN13 Stainless Steel
Dicsa - PTFE2DN13 - Dicsa Hydraulic Hose DN13 Stainless Steel
Dicsa - PTFE2DN13 - Dicsa Hydraulic Hose DN13 Stainless Steel
Dicsa - PTFE2DN13 - Dicsa Hydraulic Hose DN13 Stainless Steel
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Dicsa - PTFE2DN13 - Dicsa Hydraulic Hose DN13 Stainless Steel

Dicsa - PTFE2DN13 - Dicsa Hydraulic Hose DN13 Stainless Steel

€23.29

(Excl. VAT)

Price

(Excl. VAT)

€23.29

Product Description

Smooth PTFE tube reinforced with two stainless steel AISO 304L weaves (not suitable for contact with salt water) Temperature range: -70°C to +260°C Suitable for fuels, solvents, acids, gases, DOT4 brake fluid,... For use in compressor, food and pharmaceutical applications Always consult the latest press dimensions tables, see downloads at the bottom of each web page The specified operating pressures are at a temperature of 20°C. For higher temperatures, a correction factor applies (See diagram) Contact our sales department for advice when using chemicals. Cut to length with a hose mitre saw. Before cutting, apply tape to the hose to prevent "fanning" of the weave.
Dicsa
Dicsa is a Spanish company specializing in the manufacture and distribution of hydraulic components and connections. Founded in 1983 in Zaragoza, Spain, Dicsa has grown to become a significant player in the fluid power industry, known for its extensive catalog and commitment to quality. The company maintains its headquarters in Zaragoza, serving a global market with its comprehensive range of products. Dicsa's product lines primarily focus on hydraulic fittings, adapters, quick couplings, and hoses. They offer a vast selection of components made from various materials like steel, stainless steel, and brass, designed to meet international standards. These products are crucial for the reliable operation of hydraulic systems in diverse applications, including industrial machinery, construction equipment, and agricultural vehicles. Partao offers a comprehensive selection of genuine Dicsa spare parts, essential for maintaining the integrity and performance of hydraulic systems. Our top categories for Dicsa include Bolts & Fasteners, Brackets & Supports, Hoses & Fittings, Hydraulic Control Valves, and Hydraulic Seals. Over 342 genuine Dicsa spare parts are available at Partao. Manufacturers and maintenance professionals choose Dicsa components for their proven reliability and broad compatibility across different hydraulic systems. The brand's dedication to precision engineering ensures that its fittings and hoses provide secure, leak-free connections, which is vital for the safe and efficient operation of heavy machinery in agricultural and industrial settings.

Product Details

Brand
Dicsa
Part Numbers
8432770094354; PTFE2DN13
DN
12 mm
Norm
SAE 100 R14
Pros
Suitable for very high temperatures up to 260°C Chemically inert and therefore very suitable for various chemicals High fire resistance
Type
Hydraulic high pressure hose
Unit
Metre
Medium
Mineral oil
Weight
0,341 kg/m
Bend radius
70 mm
Qty. Rounding
0.01
Burst pressure
750 BAR
Wall thickness
0,9 mm
Material inside
Teflon (PTFE)
Number of plies
2
Product details
Smooth PTFE tube reinforced with two stainless steel AISO 304L weaves (not suitable for contact with salt water) Temperature range: -70°C to +260°C Suitable for fuels, solvents, acids, gases, DOT4 brake fluid,... For use in compressor, food and pharmaceutical applications Always consult the latest press dimensions tables, see downloads at the bottom of each web page The specified operating pressures are at a temperature of 20°C. For higher temperatures, a correction factor applies (See diagram) Contact our sales department for advice when using chemicals. Cut to length with a hose mitre saw. Before cutting, apply tape to the hose to prevent "fanning" of the weave.
Material outside
Stainless steel AISI 304
Hose inside diameter
12,7 mm
Max working pressure
280 BAR
Hose outside diameter
16 mm
Max working temperature
260 °C
Min working temperature
-70 °C
EAN
8432770094354
Manufacturer
Dicsa
