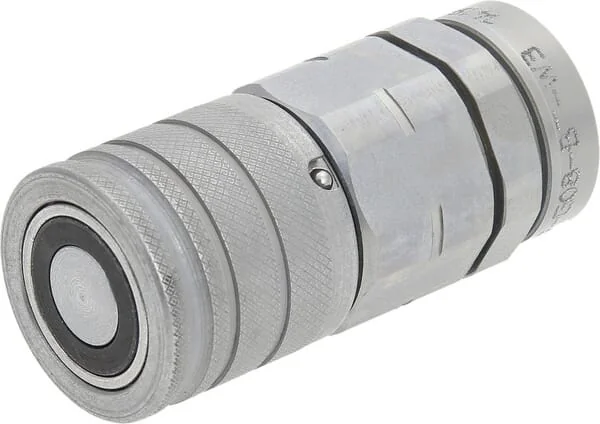

DNP - SKVF10C08 - Coupler Flat Face Female 3/8"
DNP - SKVF10C08 - Coupler Flat Face Female 3/8"
DNP - SKVF10C08 - Coupler Flat Face Female 3/8"
DNP - SKVF10C08 - Coupler Flat Face Female 3/8"

In stock - ready to ship

Order now for delivery between 9 May and 13 May
Free shipping on orders over €60

Pay Securely with

DNP - SKVF10C08 - Coupler Flat Face Female 3/8"

DNP - SKVF10C08 - Coupler Flat Face Female 3/8"

€20.38

(Excl. VAT)

Price

(Excl. VAT)

€20.38

Product Description

The DNP SKVF10C08 is a genuine DNP flat face female hydraulic quick coupler, designed for demanding high-pressure applications. This 3/8-inch NPT coupler conforms to ISO 16028 standards, ensuring compatibility and reliable performance. Its flat face design minimizes air inclusion and fluid spillage during connection and disconnection, making it ideal for environments where cleanliness is critical. Constructed from durable materials, the SKVF10C08 provides excellent resistance to corrosion and wear, ensuring a long service life in various hydraulic systems.
DNP
Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand
DNP
Unit
Each
Shape
Straight - 2 connection sides
Details
One-handed coupling With special flat valve Protected against accidental decoupling
Benefits
User-friendly Low leakage No air pockets during coupling
Material
Steel
Body size
3/8 Inch
Size code
BG 2
Properties
Locks on both sides Utmost corrosion resistance
ISO standard
16028
Total length
74 mm
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
Outside diameter
32 mm
Working pressure
350 BAR
Application range
Construction and agricultural machines Hydraulic tools Applications in sensitive environments Mineral oil-based fluids
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Flow rate at 2 bar
50 l/min
Connection no 1 type
Quick coupling
Max working temperature
100 °C
Connection no 1 diameter
19,8 mm
Min. working temperature
-30 °C
Connection 2, thread type
BSP
Connectable under pressure
No
Connection 2, thread diameter
1/2 Inch
Connection 2, threads per inch
14
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Female
Manufacturer
DNP
