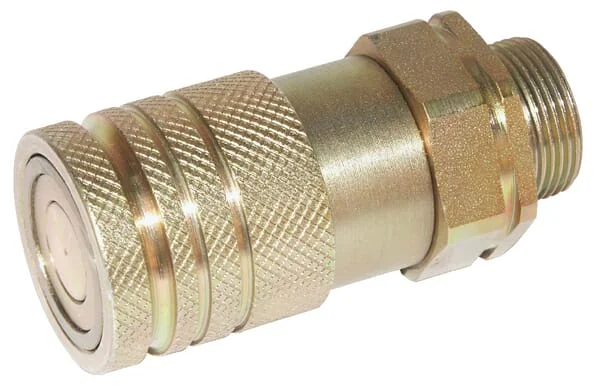

DNP - SKVF10L22 - DNP Coupling Housing BU 3/8 M22-15L

DNP - SKVF10L22 - DNP Coupling Housing BU 3/8 M22-15L

DNP - SKVF10L22 - DNP Coupling Housing BU 3/8 M22-15L

DNP - SKVF10L22 - DNP Coupling Housing BU 3/8 M22-15L

Number of products

In stock - ready to ship

Order now for delivery between 13 May and 16 May

Free shipping on orders over €60

Pay Securely with

DNP - SKVF10L22 - DNP Coupling Housing BU 3/8 M22-15L

DNP - SKVF10L22 - DNP Coupling Housing BU 3/8 M22-15L

€19.73

(Excl. VAT)

Price

(Excl. VAT)

€19.73

Number of products

Product Description

One-handed coupling With special flat valve Protected against accidental decoupling

DNP

Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Details

One-handed coupling With special flat valve Protected against accidental decoupling

Benefits

User-friendly Low leakage No air pockets during coupling

Material

Steel

Body size

10 mm

Size code

BG 2

Properties

Locks on both sides Utmost corrosion resistance

ISO standard

16028

Total length

71 mm

Seal material

Nitrile rubber [NBR] Teflon (PTFE)

Outside diameter

32 mm

Working pressure

250 BAR

Application range

Construction and agricultural machines Hydraulic tools Applications in sensitive environments Mineral oil-based fluids

Surface treatment

Zinc Nickel

Connection 2, type

Thread

Connection no 1 type

Quick coupling

Connection 2, diameter

15 mm

Max working temperature

100 °C

Connection no 1 diameter

20 mm

Min. working temperature

-30 °C

Connection 2, thread type

Metric

Connectable under pressure

No

Connection 2, thread pitch

1.50 mm

Connection 2, thread diameter

M22

Connection no 1 type - male/female

Male

Manufacturer

DNP
