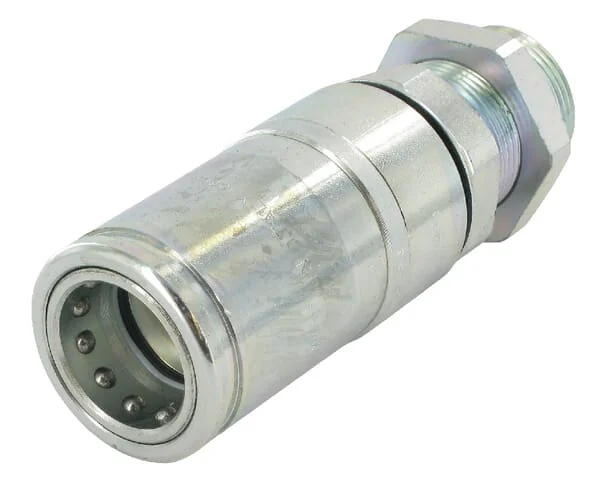

Faster - CFPV126362F - Faster Coupling Housing 3/4-M36x2.0-25S-External
Faster - CFPV126362F - Faster Coupling Housing 3/4-M36x2.0-25S-External
Faster - CFPV126362F - Faster Coupling Housing 3/4-M36x2.0-25S-External
Faster - CFPV126362F - Faster Coupling Housing 3/4-M36x2.0-25S-External
Faster - CFPV126362F - Faster Coupling Housing 3/4-M36x2.0-25S-External

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

Faster - CFPV126362F - Faster Coupling Housing 3/4-M36x2.0-25S-External

Faster - CFPV126362F - Faster Coupling Housing 3/4-M36x2.0-25S-External

€103.21

(Excl. VAT)

Price

(Excl. VAT)

€103.21

Faster
Faster produces agricultural machinery, including tillage equipment and tractor-mounted implements. The brand focuses on robust designs for heavy-duty farming tasks such as plowing and seeding. Its products are widely used in European agriculture for their reliability and performance. Shop more than 1,003 genuine Faster spare parts.

Product Details

Brand
Faster
Unit
Each
Shape
Straight - 2 connection sides
Series
CFPV
Weight
1020 g
Details
Couple and uncouple by pushing or pulling plug (one-handed)
Benefits
User-friendly
Material
Steel
Body size
20 mm
Size code
BG 3
Properties
Push-pull principle Breakaway function Rigid attachment to valve block or piping
Valve type
Poppet
ISO standard
7241-A
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
L1Total length
138,5 mm
Outside diameter
1,89 Inch
Working pressure
250 BAR
Application range
CFPV06 for leakage oil or load sensing lines CFPV12 for power beyond lines and high volume flow systems Mineral oil-based fluids
Surface treatment
White passivated
Connection 2, type
Thread
D1Outside diameter
46 mm
Flow rate at 2 bar
140 l/min
Connection no 1 type
Quick coupling
DConnection 2, diameter
25 mm
Max working temperature
125 °C
Connection no 1 diameter
48 mm
Min. working temperature
-25 °C
Connection 2, thread type
Metric
Connectable under pressure
No
Connection 2, thread pitch
2.00 mm
Connection no 1 thread type
Metric
Connection no 1 thread pitch
1.50 mm
HEX1Connection no 1 hex size
42 mm46 mm
Quick connection locking type
Radial balls
Quick connection working type
Push to connect
AConnection 2, thread diameter
M36
AConnection no 1 thread diameter
36 mm
Connection 2, type - male/female
Male
Connection no 1 thread type code
06
Quick disconnection working type
Pull to disconnect
Connection no 1 type - male/female
Female
Manufacturer
Faster
