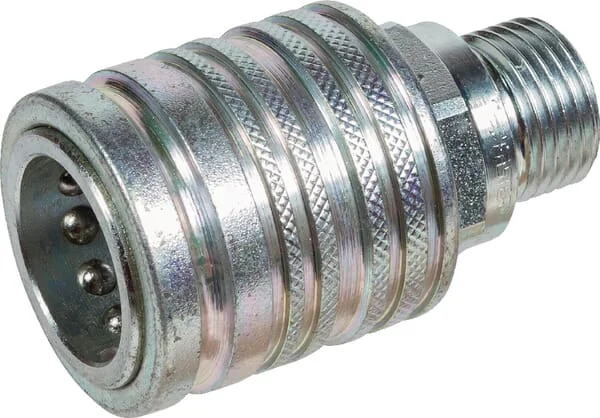

Faster - CPV081612GASF - Faster Coupling housing 1/2-1/2" BSP

OEM Quality

SKU: faster-cpv081612gasf

Faster - CPV081612GASF - Faster Coupling housing 1/2-1/2" BSP

€16.93€14.47 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€16.93

Brand
Faster
Part Numbers
CPV081612GASF
Unit
Each
Shape
Straight - 2 connection sides
Series
CPV
Weight
249,7 g
Material
Carbon steel
Body size
12,5 mm
Size code
BG 3
Properties
Push-pull principle Axial actuation of locking sleeve in both directions (double acting) Breakaway function Induction hardened stressed parts
Valve type
Poppet
ISO standard
7241-A
LTotal length
2,56 Inch
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
L1Total length
65 mm
Technical info
Couple by inserting the plug (one-handed operation)
Outside diameter
38 mm
Working pressure
250 BAR
Application range
For universal use Agricultural machines Mineral oil-based fluids
Surface treatment
White passivated
Connection 2, type
Thread
Flow rate at 2 bar
75 l/min
Connection no 1 type
Quick coupling
Max working temperature
125 °C
Connection no 1 diameter
38 mm
Connection no 1 hex size
27 mm
Min. working temperature
-25 °C
Connection 2, thread type
BSPP
Connectable under pressure
No
Connection no 1 thread type
BSP
Quick connection locking type
Radial balls
Quick connection working type
Push to connect
Connection 2, threads per inch
14
DConnection 2, thread diameter
1/2 Inch
Connection no 1 thread diameter
1/2 Inch
Connection 2, type - male/female
Male
Connection no 1 thread type code
16
Quick disconnection working type
Pull to disconnect
Connection no 1 type - male/female
Male
Manufacturer
Faster

Faster coupling housing, part number CPV081612GASF, features a 1/2" BSP thread and is an aftermarket part made to OEM quality standards. It operates on a push-pull principle with axial sleeve actuation in both directions and includes a breakaway function. The carbon steel housing is white passivated.
Faster
Faster produces agricultural machinery, including tillage equipment and tractor-mounted implements. The brand focuses on robust designs for heavy-duty farming tasks such as plowing and seeding. Its products are widely used in European agriculture for their reliability and performance. Shop more than 1,060 genuine Faster spare parts.
