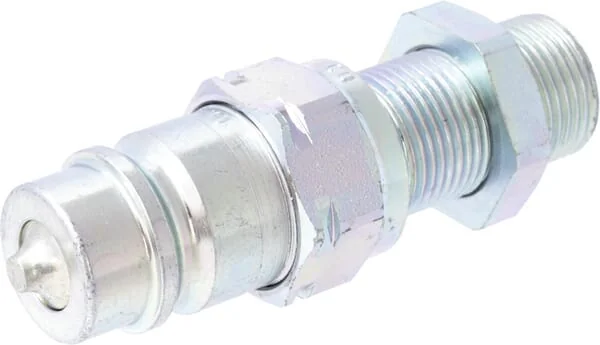

Faster - CNV0862015M - Faster Push-In Coupling Hydraulic 1M20x1.5-12S
Faster - CNV0862015M - Faster Push-In Coupling Hydraulic 1M20x1.5-12S
Faster - CNV0862015M - Faster Push-In Coupling Hydraulic 1M20x1.5-12S
Faster - CNV0862015M - Faster Push-In Coupling Hydraulic 1M20x1.5-12S
Faster - CNV0862015M - Faster Push-In Coupling Hydraulic 1M20x1.5-12S

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping on orders over €60

Pay Securely with

Faster - CNV0862015M - Faster Push-In Coupling Hydraulic 1M20x1.5-12S

Faster - CNV0862015M - Faster Push-In Coupling Hydraulic 1M20x1.5-12S

€6.66

(Excl. VAT)

Price

(Excl. VAT)

€6.66

Faster
Faster produces agricultural machinery, including tillage equipment and tractor-mounted implements. The brand focuses on robust designs for heavy-duty farming tasks such as plowing and seeding. Its products are widely used in European agriculture for their reliability and performance. Shop more than 1,003 genuine Faster spare parts.

Product Details

Brand
Faster
Unit
Each
Shape
Straight - 2 connection sides
Series
CNV
Weight
166,6 g
Material
Carbon steel
Body size
12,5 mm
Size code
BG 2
Properties
Induction hardened stressed parts Suitable sleeve: Faster CPV
Valve type
Poppet
ISO standard
7241-A 8434-1-S
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
L1Total length
81 mm
Technical info
Couple by inserting the plug (one-handed operation)
Working pressure
250 BAR
Application range
For universal use Agricultural machines Mineral oil-based fluids
Surface treatment
White passivated
Connection 2, type
Thread
D1Outside diameter
30 mm
Flow rate at 2 bar
75 l/min
Connection no 1 type
Quick coupling
Max working temperature
125 °C
Connection no 1 diameter
20,5 mm
Connection no 1 hex size
1,06 Inch1,06 Inch
Min. working temperature
-25 °C
Connection 2, thread type
Metric
Connectable under pressure
Yes
Connection 2, thread pitch
1.50 mm
Connection no 1 thread type
Metric
Connection no 1 thread pitch
1.50 mm
HEX.1Connection no 1 hex size
27 mm27 mm
Quick connection locking type
Radial balls
Quick connection working type
Push to connect
EConnection 2, thread diameter
M20
Connection no 1 thread diameter
20 mm
Connection 2, type - male/female
Female
Connection no 1 thread type code
06
Quick disconnection working type
Pull to disconnect
Connection no 1 type - male/female
Male
Manufacturer
Faster
