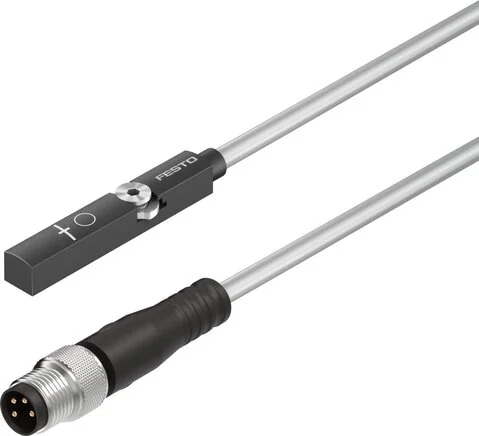

Festo - 8063974 - Position Transmitter

SKU: festo-8063974

Festo - 8063974 - Position Transmitter

€114.67€98.01 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€114.67

Brand
Festo
Design
For T-slot
Report
IO-Link
Permission
c UL us - Listed (OL)
Material Note
halogenfrei
Control Output
2x PNP or 2x NPN adjustable
Fastening Type
Insertable from above into the slot
Status Display
LED red
Line Properties
energiekettentauglich/ robotertauglich
Residual Ripple
10%
Setting Options
kapazitive Taste
Cable Length (m)
0,3
Housing Material
High-alloyed stainless steels
IO-Link, Profile
Smart sensor profile
Voltage Drop (V)
0,5
Certification Body
UL E232949
Measured Parameter
Position
Overload Resistant
Available
Repeatability (mm)
0,2
Cable Shield Colour
Grey
IO-Link, Port Class
A
Protection Category
IP68
Switch On Time (ms)
4
Locking Nut Material
Nickel-plated brass
Recording Range (mm)
52000
Switch Off Time (ms)
4
Test Conditions Line
Energiekette: > 5 Millionen Zyklen, Biegeradius 28 mm
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Hall magnetic
Empty Run Current (mA)
12
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Copper alloy gold plated
Resolution Travel (mm)
0,02
Max. Output Current (mA)
50
Short Circuit Resistance
yes
Ambient Temperature (°C)
-40 to 80
IO-Link, Function Classes
Schalt Signal Kanal (SSC)
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Max. Movement Speed (m/s)
3
Switching Element Function
Opener/closer switchable
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
IO-Link, Communication Mode
COM2 (38.4 kBaud)
Reverse Polarity Protection
for all electrical connections
Sampling Interval Type (ms)
2
Typical Linearity Error (mm)
±1
Max. Switching Frequency (Hz)
125
IO-Link, Process Data Width IN
2 Bytes
Max. Switch Off Voltage DC (V)
30
Max. Switching Capacity DC (W)
1,5
Operating Voltage Range DC (V)
10 to 30
IO-Link, Minimum Cycle Time (ms)
2,5
IO-Link, Process Data Contents IN
4 bit SSC (Switching Signal)
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
Cable with plug
Electrical Connection 1, Connection Pattern
991171
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
4
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Ambient Temperature For Moving Cable Placements (°C)
-20 to 70
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568442125
Manufacturer
Festo
