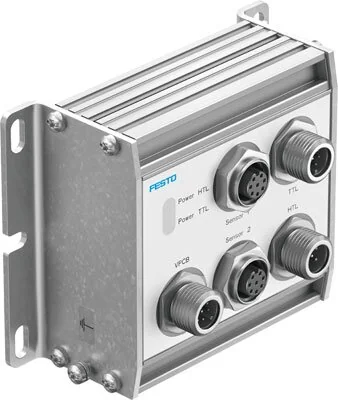

Signal Range
HTL-Signal: High: min. 18 V, Low: max. 2 V, TTL-Signal: High: min. 2,4 V, Low: max. 0,4 V
Fastening Type
mit Durchgangsbohrung für Schraube M4
Housing Material
Aluminium wrought alloy, anodised
Output Frequency
HTL-Signal: max. 450 Hz, TTL-Signal: max. 7200 Hz
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Diagnose Function
Display via LED
Material Information
RoHs compliant
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
arbitrary
LABS (PWIS) Conformity
IP65
Ambient Temperature (°C)
-5 to 50
Reverse Polarity Protection
yes
Operating Voltage Range DC (V)
20.4 to 30
Nominal Operating Voltage DC (V)
24
Information About Protection Category
In mounted condition
Max. Electrical Power Consumption (W)
6
Power Input For Unloaded Outputs (mA)
50
Electrical Connection: Outlet, Function
TTL
Current Carrying Capacity Per Output (mA)
50
Electrical Connection: Outlet 2, Function
HTL
Protect Against Direct And Indirect Contact
Funktionskleinspannung mit sicherer Trennung (PELV)
UKCA Marking (See Declaration Of Conformity)
1 - low corrosion stress
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Electrical Connection: Outlet, Connection Type
Plug
Electrical Connection For Valve, Connection Type
Plug
Electrical Connection: Outlet 2, Connection Type
Plug
Electrical Connection Sensor, Number Of Pins / Wires
8
Electrical Connection: Outlet, Connection Technology
M12x1 A coded to EN 61076-2-101
Electrical Connection For Valve, Number Of Pins/wires
M12x1 A coded to EN 61076-2-101
Electrical Connection: Outlet, Number Of Pins / Wires
8
Electrical Connection For Valve, Connection Technology
M12x1 A coded to EN 61076-2-101
Electrical Connection: Outlet 2, Connection Technology
M12x1 A coded to EN 61076-2-101
Electrical Connection: Outlet 2, Number Of Pins / Wires
5
