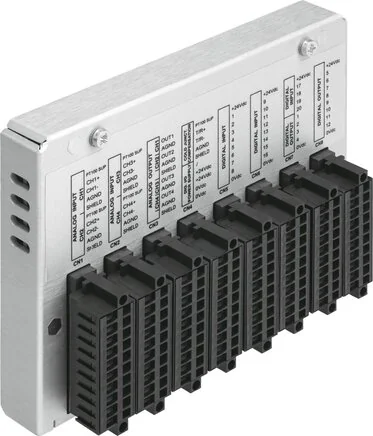

Festo - CDPX-EA-V1-575300 - Input/Output Module

SKU: festo-cdpx-ea-v1-575300

Browse all parts
Festo - CDPX-EA-V1-575300 - Input/Output Module

€1,113.21€951.46 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,113.21

Brand
Festo
Permission
c UL us - Listed (OL)
Height (mm)
89
Length (mm)
125
Material Note
RoHs compliant
Relative Humidity
Not condensing
Protection Category
IP20
Integration Depth (mm)
34
LABS (PWIS) Conformity
VDMA24364-Zone III
Quantity Digital Inputs
20
Quantity Digital Outputs
12
Ambient Temperature (°C)
0 to 50
Analogue Inputs, Quantity
4
Bearing Temperature (°C)
-20 to 70
Analogue Outputs, Quantity
4
Analogue Inputs, Resolution
12 bit
Analogue Outputs, Resolution
12 bit
Analogue Inputs, Signal Range
± 10 V
Analogue Outputs, Signal Range
± 10 V
Digital Outputs, Output Voltage
12 - 30 V DC
Digital Inputs, Quick Number Inputs
2
Digital Outputs, Output Current (A)
0.5
Digital Inputs, Potential Separation
yes
Digital Outputs, Overload Protection
yes
Digital Outputs, Potential Separation
yes
Digital Inputs, Nominal Value For TRUE
12 - 30 VDC
Analogue Inputs, Input Resistance (Ohm)
47
Digital Inputs, Input Signal Delay (ms)
20
Digital Inputs, Input Voltage / Current
24 VDC
Analogue Inputs, Linearity Error At 25 °C
0,1 %FS
Analogue Outputs, Linearity Error At 25 °C
± 0.2%
Digital Inputs, Nominal Value For FALSE (V)
0
Analogue Outputs, Max. Load Resistance (Ohm)
470
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Analogue Inputs, Absolute Precision At 25 °C
0,10%
Digital Outputs, Short Circuit Current Rating
yes
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Digital Inputs, Incremental Encoder Connection
2
EAN
4052568223960
Manufacturer
Festo
